NA2XS2Y/NA2XS(F)2Y N2XSY NAXSY 2XS(FL)2Y 2XSEY 2XSEYBY 2XS2Y 2XSEYB2Y 2XSE(F)2YB2Y A2XS2YT

2XSY / N2XSY / A2XSY / NA2XSY

Voltage: 6/10kV 12/20kV 18/30kV
Core: Single Core
Conductor: AL/CU conductor
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material (bonded)
Screen: Copper wires and copper tape
Outer Sheath: MDPE (Medium Density Polyethylene)
Sheath Colour :Red / Black

APPLICATION: Single core MV cable suitable for outdoor and indoor installation, in air, in grounds, and in cable ducts.

2XS2Y / N2XS2Y / A2XS2Y / NA2XS2Y

Voltage: 6/10kV 12/20kV 18/30kV
Core: Single Core
Conductor: Cu / Al conductors
Inner semi- conductive layer: Semi-conductive XLPE compound
Insulation: XLPE compound
Insulation Screen: Semi-conductive material (bonded)
Longitudinal Waterblocking: Semi-conductive swellable tape
Screen: Copper wires and copper tape
Separating layer: Layer of plastic tape
Sheath: PVC compound
Colour : Black

APPLICATION: They are suitable for use in distribution installations, electric power stations and industrial systems.

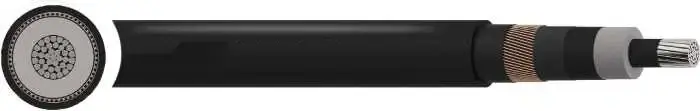

2XS(F)2Y / N2XS(F)2Y / A2XS(F)2Y / NA2XS(F)2Y

Voltage: 6/10kV 12/20kV 18/30kV
Core: Single Core
Conductor: Cu / Al conductors
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material (bonded)
Longitudinal Waterblocking: Semi-conductive swellable tape
Screen: Copper wires and copper tape
Longitudinal Waterblocking: Swellable Tapes
Outer Sheath: MDPE
Sheath Colour: Red / Black

APPLICATION: Single core MV cable suitable for indoor and outdoor installations, in air, in grounds and in cable ducts

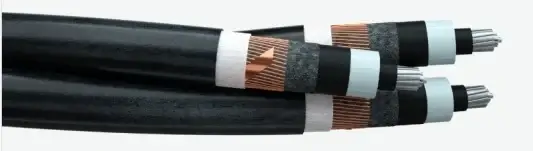

2XS(F)2Y -TRIPLEX/ N2XS(F)2Y-TRIPLEX/ A2XS(F)2Y-TRIPLEX/ NA2XS(F)2Y-TRIPLEX

Voltage: 6/10kV 12/20kV 18/30kV
Conductor: Cu / Al conductors
Inner semi- conductive layer: Semi-conductive XLPE compound
Insulation: XLPE compound
Outer Semi-Conductive Layer: semi-conductive XLPE compound
Screen: Copper wires and copper tape
Sheath: PE compound
Sheath Colour: Black
Factory bundled in triplex: Three single-core cables factory bindled in TRIPLEX

APPLICATION: They are suitable for use in distribution installations, electric power stations and industrial systems.

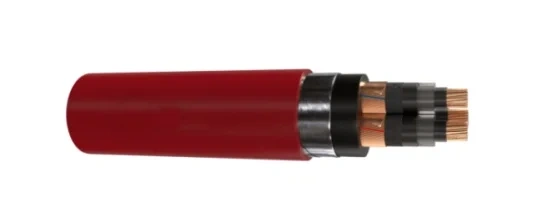

2XSEY / N2XSEY / A2XSEY / NA2XSEY

APPLICATION: Electrical Power supply in public networks and industrial plants. Indoor and outdoor installation, in/on cable management systems, direct buried or in conduits.

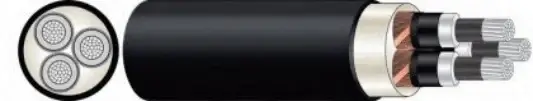

2XSE2Y / N2XSE2Y / A2XSE2Y / NA2XSE2Y

Voltage: 6/10kV 12/20kV 18/30kV
Conductor: Cu / Al conductors
Inner Semi-Conductive Layer: semi-conductive XLPE compound
Insulation: XLPE compound
Outer Semi-Conductive Layer: semi-conductive XLPE compound and semi-conductive tape or extruded semi-conductive XLPE compound
Cable assembly: Three insulated and screened phases with longitudinal water-blocking element are twisted in three core cable
Inner sheath: Filling and inner sheath-PE – LDPE
Screen: Copper wires and copper tape
Sheath: PE compound – HDPE
Sheath Colour: Black

APPLICATION: They are suitable for use in distribution installations, electric power stations and industrial systems.

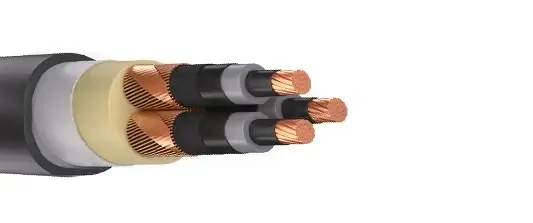

2XSE(F)2Y / N2XSE(F)2Y / A2XSE(F)2Y / NA2XSE(F)2Y

Voltage: 6/10kV 12/20kV 18/30kV
Conductor: Cu / Al conductors
Inner Semi-Conductive Layer: semi-conductive XLPE compound
Insulation: XLPE compound
Outer Semi-Conductive Layer: semi-conductive XLPE compound
Water resisting element: Layer of semi-conductive water absorbing tapes – discret
Screen: Copper wires and copper tape
Water resisting element: Layer of semi-conductive water absorbing tapes
Cable assembly: Three insulated and screened phases with longitudinal water-blocking element are twisted in three core cable
Inner sheath: Filling and inner sheath-PE – LDPE
Sheath: PE compound – HDPE
Sheath Colour: Black

APPLICATION: They are suitable for use in distribution installations, electric power stations and industrial systems.

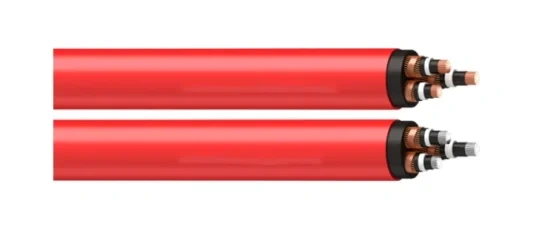

2XSEYBY / A2XSEYBY

Voltage: 6/10kV 12/20kV 18/30kV
Conductor: Cu / Al conductors
Inner Semi-Conductive Layer: semi-conductive XLPE compound
Insulation: XLPE compound
Outer Semi-Conductive Layer: semi-conductive XLPE compound
Cable assembly: Three insulated and screened phases with longitudinal water-blocking element are twisted in three core cable
Inner sheath: PVC compound
Armour: two steel tapes or two steel galvanized tapes
Sheath: PE compound
Sheath Colour: Red

APPLICATION: They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors underground and in water as well as for installation on cable trays for industries,switchboards and power stations.

2XS(FL)2Y-TRIPLEX/ A2XS(FL)2Y-TRIPLEX/NA2XS(FL)2Y-TRIPLEX

Voltage: 6/10kV 12/20kV
Conductor: Cu / Al conductors
Inner Semi-Conductive Layer: semi-conductive XLPE compound
Insulation: XLPE compound
Outer Semi-Conductive Layer: semi-conductive XLPE compound
Water resisting element: Layer of semi-conductive water absorbing tapes
Screen: Copper wires and copper tape
Water resisting element: water absorbing powder
RADIAL PROTECTION FROM MOISTURE INGRESS: Al foil with copolymer layer
Sheath: PE compound
Colour: Black
FACTORY BUNDLED IN TRIPLEX: three single-core cables factory bindled in TRIPLEX
Inner sheath: PVC compound
Sheath: PE compound
Sheath Colour: Black

APPLICATION: They are suitable for use in distribution installations, electric power stations and industrial systems.

2XSE(FL)2Y / N2XSE(FL)2Y / A2XSE(FL)2Y / NA2XSE(FL)2Y

Voltage: 6/10kv 12/20 kV 12/ 24 kV
Conductor: Cu / Al conductors
Inner Semi-Conductive Layer: semi-conductive XLPE compound
Insulation: XLPE compound
Outer Semi-Conductive Layer: semi-conductive XLPE compound
Water resisting element: Layer of semi-conductive water absorbing tapes – discret
Screen: Copper wires and copper tape
Water resisting element: Layer of semi-conductive water absorbing tapes
CABLE ASSEMBLY:Three insulated and screened phases with longitudinal water-blocking element are twisted in three core cable Filling – filiers with water-blocking element
Inner sheath:Layer of semi-conductive water absorbing tapes
RADIAL PROTECTION FROM MOISTURE INGRESS: Al foil with copolymer layer
Sheath: PE compound
Colour: Black

APPLICATION: They are suitable for use in distribution installations, electric power stations and industrial systems.

2XSEYB2Y / A2XSEYB2Y

Voltage: 6/10kV 12/20kV 18/30kV
Conductor: Cu / Al conductors
Insulation: XLPE compound
Inner Semi-Conductive Layer: semi-conductive XLPE compound
Outer Semi-Conductive Layer: semi-conductive XLPE compound
CABLE ASSEMBLY:Three insulated and screened phases are twisted with fillings and tape support
ARMOUR: two steel tapes or two steel galvanized tapes
SHEATH: PVC compound
Inner sheath:PVC compound
Colour: Black/ Red

APPLICATION: They are suitable for use in distribution installations, electric power stations and industrial systems.

2XSE(F)2YB2Y / A2XSE(F)2YB2Y / 2XSE(F)2YBY / A2XSE(F)2YBY

Voltage: 6/10kV 12/20kV
Conductor: Cu / Al conductors
Inner Semi-Conductive Layer: semi-conductive XLPE compound
Insulation: XLPE compound
OUTER SEMI- CONDUCTIVE LAYER: semi-conductive XLPE compound
WATER RESISTING ELEMENT: Layer of semi-conductive water absorbing tapes – discret
METAL SCREEN OVER EACH PHASE: Cu wires concentrically laid and one contact of Cu tape with thickness of 0.1mm
WATER RESISTING ELEMENT: Layer of semi-conductive water absorbing tapes
CABLE ASSEMBLY: Three insulated and screened phases with longitudinal water-blocking element are twisted in three core cable
INNER SHEATH: Filling and inner sheath-PE – LDPE
ARMOUR: two steel tapes or two steel galvanized tapes
SHEATH: For type 2Y- PE compound – HDPE; For type Y- PVC compound
Colour:For type 2Y – black; For type Y – red

APPLICATION: They are suitable for use in distribution installations, electric power stations and industrial systems.

A2XS2YT / A2XS(F)2YT

Voltage: 12/20kV
Conductor: Al conductors
Insulation: XLPE compound
INNER SEMI- CONDUCTIVE LAYER: semi-conductive XLPE compound
METAL SCREEN: Cu wires concentrically laid and one contact of Cu tape with thickness of 0.1mm.
WATER RESISTING ELEMENT: Layer of semi-conductive water absorbing tapes
OUTER SEMI- CONDUCTIVE LAYER: semi-conductive XLPE compound
SHEATH: For type 2Y- PE compound – HDPE; For type Y- PVC compound
COLOR: black
SUPPORTING INSULATED ST ROPE: St rope with insulation
CABLE LAY UP TRIPLEX: Constructions twisted into a bundle include: – 3-phase and supporting insulated St rope

APPLICATION: The cables can be installed in air hanger on supporting element included in the bundle of three phases. They are recommended in: – regions where is not allowed cutting of trees for openings of overhead lines; – in boggy terrains where digging of a ditch is difficult and expensive; – in coastal and highly polluted industrial areas in atmosphere as well as in ground; – in stony wooden areas; -in all cases when laying of cables in the ground and construction of overhead lines is hampered and effective overhead cabling can be proved.

6/10kV 12/20kV18/30kV N2XSY Cable Parameter

Number of cores	Copper	Overall	Overall diameter max. value	Weight	Current carrying capacity ground	Current carrying capacity air
Number of cores	figure	diameter	Overall diameter max. value	appr.	Current carrying capacity ground	Current carrying capacity air
mm²	kg/km	appr. mm	appr. mm	kg / km	A*	A*
6 / 10 kV
1 x 35 RM/16	540	23	28	900	187	197
1 x 50 RM/16	690	24	29	1.05	220	236
1 x 70 RM/16	890	26	31	1.3	268	294
1 x 95 RM/16	1.14	27	32	1.6	320	358
1 x 120 RM/16	1.39	29	34	1.85	363	413
1 x 150 RM/25	1.795	30	35	2.2	405	468
1 x 185 RM/25	2.145	32	37	2.6	456	535
1 x 240 RM/25	2.695	34	39	3.15	526	631
1 x 300 RM/25	3.295	36	40	3.75	591	722
1 x 400 RM/35	4.41	40	45	4.65	662	827
1 x 500 RM/35	5.41	43	47	5.75	739	921
1 x 35 RM/16	540	27	32	1.1	189	200
12/ 20 kV
1 x 50 RM/16	690	28	33	1.25	222	239
1 x 70 RM/16	890	30	35	1.45	271	297
1 x 95 RM/16	1.14	31	36	1.75	323	361
1 x 120 RM/16	1.39	33	38	2.05	367	416
1 x 150 RM/25	1.795	34	39	2.4	409	470
1 x 185 RM/25	2.145	36	41	2.8	461	538
1 x 240 RM/25	2.695	39	44	3.4	532	634
1 x 300 RM/25	3.295	41	46	4	599	724
1 x 400 RM/35	4.41	44	49	4.95	671	829
1 x 500 RM/35	5.41	47	52	6.05	754	953
18 / 30 kV
1 x 50 RM/16	690	33	38	1.45	225	241
1 x 70 RM/16	890	35	40	1.7	274	299
1 x 95 RM/16	1.14	36	41	2.05	327	363
1 x 120 RM/16	1.39	38	43	2.3	371	418
1 x 150 RM/25	1.795	39	44	2.7	414	472
1 x 185 RM/25	2.145	41	46	3.1	466	539
1 x 240 RM/25	2.695	43	48	3.7	539	635
1 x 300 RM/25	3.295	46	51	4.35	606	725
1 x 400 RM/35	4.41	49	54	5.3	680	831
1 x 500 RM/35	5.41	52	57	6.45	765	953

Get a free quote by e-mail: sales@huadongcablegroup.com

6/10kV 12/20kV18/30kV N2XS2Y Cable Parameter

Number of cores	Copper	Overall	Overall diameter max. value	Weight	Current carrying capacity ground	Current carrying capacity air
Number of cores	figure	diameter	Overall diameter max. value	appr.	Current carrying capacity ground	Current carrying capacity air
mm虏	kg/km	appr. mm	appr. mm	kg / km	A*	A*
6 / 10 kV
1 x 35 RM/16	540	23	28	820	187	197
1 x 50 RM/16	690	24	29	960	220	236
1 x 70 RM/16	890	26	31	1.15	269	292
1 x 95 RM/16	1.14	27	32	1.45	320	358
1 x 120 RM/16	1.39	29	34	1.7	363	413
1 x 150 RM/25	1.795	30	35	2	405	468
1 x 185 RM/25	2.145	32	37	2.35	456	535
1 x 240 RM/25	2.695	34	39	2.9	526	631
1 x 300 RM/25	3.295	36	41	3.55	591	722
1 x 400 RM/35	4.41	40	45	4.5	662	827
1 x 500 RM/35	5.41	43	48	5.55	744	949
12 / 20 kV
1 x 35 RM/16	540	27	32	1	189	200
1 x 50 RM/16	690	28	33	1.15	222	239
1 x 70 RM/16	890	30	35	1.35	271	297
1 x 95 RM/16	1.14	31	36	1.6	323	361
1 x 120 RM/16	1.39	33	38	1.85	367	416
1 x 150 RM/25	1.795	34	39	2.25	409	470
1 x 185 RM/25	2.145	36	41	2.6	461	538
1 x 240 RM/25	2.695	39	44	3.15	532	634
1 x 300 RM/25	3.295	41	46	3.8	599	724
1 x 400 RM/35	4.41	44	49	4.75	671	829
1 x 500 RM/35	5.41	47	52	5.8	754	953
18 / 30 kV
1 x 50 RM/16	690	33	38	1.35	225	241
1 x 70 RM/16	890	35	40	1.6	274	299
1 x 95 RM/16	1.14	36	41	1.9	327	363
1 x 120 RM/16	1.39	38	43	2.2	371	418
1 x 150 RM/25	1.795	39	44	2.55	414	472
1 x 185 RM/25	2.145	41	46	2.95	466	539
1 x 240 RM/25	2.695	43	48	3.5	539	635
1 x 300 RM/25	3.295	46	51	4.15	606	725
1 x 400 RM/35	4.41	49	54	5.15	680	831
1 x 500 RM/35	5.41	52	57	6.2	765	953
