NA2XS2Y / NA2XS(F)2Y / NA2XS(FL)2Y Medium Voltage Aluminium Cables

APPLICATION

Medium voltage power cables for distribution networks and generation units, suitable for external installation including in direct in ground and in buried cable ducts. UV Resistant. For fixed outdoor installations where there may be an element of mechanical stress. Optional waterblocking properties available. Medium Voltage Aluminium MDPE power distribution cable with particular application in wind energy installations.

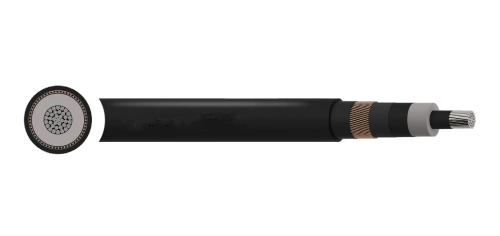

NA2XS2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable

Voltage Rating Uo/U (Um): 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 Stranded Aluminium
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material (bonded)
Screen: Copper wires and copper tape
Outer Sheath: MDPE
STANDARDS: IEC 60502-2, IEC 60228

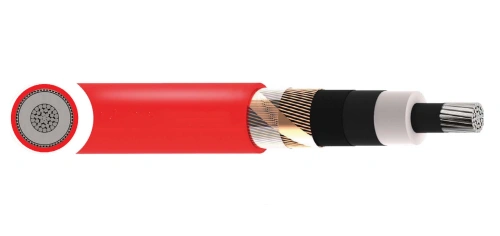

NA2XS2Y XLPE MDPE/ HDPE 8.7/15 (17.5) kV Cable

Voltage Rating Uo/U: 8.7/15 (17.5) kV
Conductor: Class 2 stranded compacted aluminium
Conductor Screen: Semi-conductive extruded XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive extruded XLPE
Wrapping: Non swelling semi conductive tape
Metallic Screen: Copper Wires and Tape
Wrapping: Polyester tape
Sheath: MDPE / HDPE
STANDARDS: IEC 60502-2

NA2XS(F)2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable

Voltage Rating Uo/U (Um): 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 Stranded Aluminium
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material (bonded)
Longitudinal Waterblocking: Semi-conductive swellable tape
Screen: Copper wires and copper tape
Longitudinal Waterblocking: Swellable Tapes
Outer Sheath: MDPE
STANDARDS: IEC 60502-2, IEC 60228

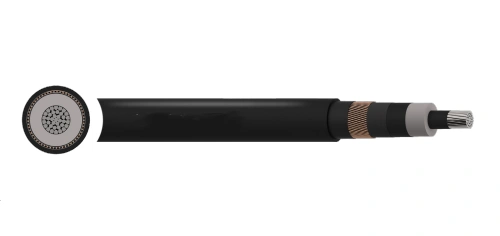

NA2XS(F)2Y XLPE MDPE / HDPE 8.7/15 (17.5) kV Cable

Voltage Rating Uo/U: 8.7/15 (17.5) kV
Conductor: Class 2 stranded Aluminium
Conductor Screen: Semi-conductive extruded XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive extruded XLPE
Longitudinal Waterblock: Semi-conductive water swelling tape
Metallic Screen: Copper Wires and Tape
Longitudinal Waterblock: Non-conductive water swelling tape
Sheath: MDPE / HDPE
STANDARDS: IEC 60502-2, EN 60228

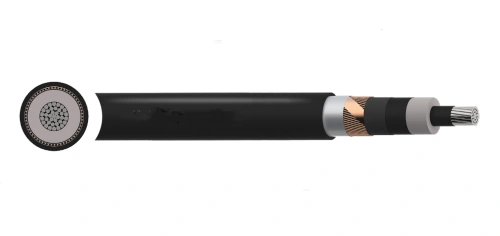

NA2XS(FL)2Y AD8 Cable 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV

Voltage Rating Uo/U (Um): 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 Stranded Aluminium
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material (bonded)
Longitudinal Waterblocking: Semi-conductive swellable tape
Screen: Copper wires and copper tape
Longitudinal Waterblocking: Swellable Tapes
Radial Waterblocking: Al/PET (Aluminium/Polyester) Tape tightly bonded to sheath
Outer Sheath: MDPE
STANDARDS: IEC 60502-2, IEC 60228

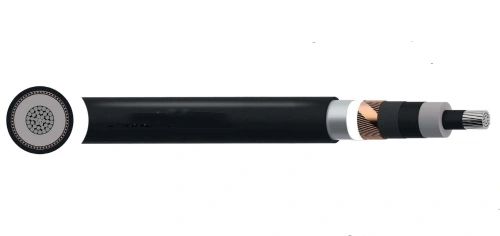

NA2XS(FL)2Y MDPE / HDPE AD8 Cable 8.7/15 (17.5)kV

Voltage Rating Uo/U: 8.7/15 (17.5) kV
Conductor: Class 2 stranded Aluminium
Conductor Screen: Semi-conductive extruded XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive extruded XLPE
Longitudinal Waterblock: Semi-conductive water swelling tape
Metallic Screen: Copper Wires and Tape
Longitudinal Waterblock: Non-conductive water swelling tape
Radial Waterblock: Al/PET (Aluminium/Polyester) Tape tightly bonded to sheath
Sheath: MDPE / HDPE
STANDARDS: IEC 60502-2, EN 60228

NA2XS2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable Data table
NO. OF CORES NOMINAL CROSS SECTIONAL AREA(mm²) NOMINAL WEIGHT(kg/km)
Conductor Screen
NA2XS2Y 6/10 (12)kV
1 50 16 550
1 70 16 650
1 95 16 750
1 120 16 850
1 150 25 1100
1 185 25 1200
1 240 25 1400
1 300 25 1600
1 400 35 2000
1 500 35 2500
630 35 3000
NA2XS2Y 12/20 (24)kV
1 50 16 700
1 70 16 800
1 95 16 900
1 120 16 1000
1 150 25 1300
1 185 25 1400
1 240 25 1600
1 300 25 1900
1 400 35 2250
1 500 35 2750
630 35 3250
NA2XS2Y 18/30 (36)kV
1 50 16 900
1 70 16 1100
1 95 16 1200
1 120 16 1300
1 150 25 1500
1 185 25 1700
1 240 25 1900
1 300 25 2250
1 400 35 2750
1 500 35 3000
1 630 35 3500
Get a free quote by e-mail: sales@huadongcablegroup.com

NA2XS2Y XLPE MDPE/ HDPE 8.7/15 (17.5) kV Cable Data table
NO. OF CORES NOMINAL CROSS SECTIONAL AREA(mm²) NOMINAL WEIGHT(kg/km)
1 50 780
1 70 950
1 95 1160
1 120 1400
1 150 1520
1 185 1660
1 240 1870
1 300 2080
1 400 2390
1 500 2810
1 630 3310
1 800 3920
1 1000 4680
Get a free quote by e-mail: sales@huadongcablegroup.com

NA2XS(F)2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable Data table
NO. OF CORES NOMINAL CROSS SECTIONAL AREA(mm²) NOMINAL WEIGHT(kg/km)
Conductor Screen
NA2XS(F)2Y 6/10 (12)kV
1 50 16 550
1 70 16 650
1 95 16 750
1 120 16 850
1 150 25 1100
1 185 25 1200
1 240 25 1400
1 300 25 1600
1 400 35 2000
1 500 35 2500
1 630 35 3000
NA2XS(F)2Y 12/20 (24)kV
1 50 16 700
1 70 16 800
1 95 16 900
1 120 16 1000
1 150 25 1300
1 185 25 1400
1 240 25 1600
1 300 25 1900
1 400 35 2250
1 500 35 2750
1 630 35 3250
NA2XS(F)2Y 18/30 (36)kV
1 50 16 1000
1 70 16 1100
1 95 16 1300
1 120 16 1400
1 150 25 1600
1 185 25 1800
1 240 25 2000
1 300 25 2250
1 400 35 2750
1 500 35 3250
1 630 35 3750
Get a free quote by e-mail: sales@huadongcablegroup.com

NA2XS(F)2Y XLPE MDPE / HDPE 8.7/15 (17.5) kV Cable Data table
NO. OF CORES NOMINAL CROSS SECTIONAL AREA(mm²) NOMINAL WEIGHT(kg/km)
NA2XS(F)2Y XLPE MDPE 8.7/15 (17.5) kV
1 50 663
1 70 770
1 95 865
1 120 979
1 150 1202
1 185 1310
1 240 1516
1 300 1745
1 400 2171
1 500 2543
1 630 3137
1 800 3826
NA2XS(F)2Y XLPE HDPE 8.7/15 (17.5) kV
1 50 720
1 70 890
1 95 1100
1 120 1330
1 150 1440
1 185 1580
1 240 1780
1 300 1990
1 400 2300
1 500 2710
1 630 3190
1 800 3780
1 1000 4510
Get a free quote by e-mail: sales@huadongcablegroup.com

NA2XS(FL)2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable Data table
NO. OF CORES NOMINAL CROSS SECTIONAL AREA(mm²) NOMINAL WEIGHT(kg/km)
Conductor Screen
NA2XS(FL)2Y AD8 6/10 (12)kV
1 50 16 550
1 70 16 650
1 95 16 750
1 120 16 850
1 150 25 1100
1 185 25 1200
1 240 25 1400
1 300 25 1600
1 400 35 2000
1 500 35 2500
1 630 35 3000
NA2XS(FL)2Y AD8 12/20 (24)kV
1 50 16 750
1 70 16 900
1 95 16 1000
1 120 16 1100
1 150 25 1300
1 185 25 1500
1 240 25 1700
1 300 25 2000
1 400 35 2500
1 500 35 2750
1 630 35 3250
NA2XS(FL)2Y AD8 18/30 (36)kV
1 50 16 1000
1 70 16 1100
1 95 16 1300
1 120 16 1400
1 150 25 1600
1 185 25 1800
1 240 25 2000
1 300 25 2250
1 400 35 2750
1 500 35 3250
1 630 35 3750
Get a free quote by e-mail: sales@huadongcablegroup.com

NA2XS(FL)2Y MDPE / HDPE AD8 Cable 8.7/15 (17.5)kV Data table
NO. OF CORES NOMINAL CROSS SECTIONAL AREA(mm²) NOMINAL WEIGHT(kg/km)
1 50 780
1 70 950
1 95 1160
1 120 1400
1 150 1520
1 185 1660
1 240 1860
1 300 2080
1 400 2380
1 500 2800
1 630 3290
1 800 3910
1 1000 4630
Get a free quote by e-mail: sales@huadongcablegroup.com
