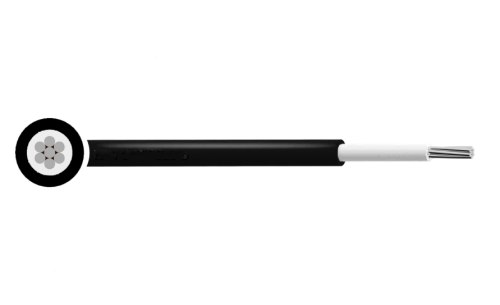

Applications
With applications across a wide range of industries, including EV & e Mobility and Renewable Energy (including wind turbines and solar farms), they are suitable for fixed installation, without mechanical stress. They can be installed in free air, or in the ground – subject to relevant national wiring regulations. The cable is compliant with the Construction Products Regulation and can therefore be installed internally as well as externally (UV resistant).
Voltage Rating: 0.6/1 (1.2)kV
Temperature Rating: Flexed: 5°C to +70°C; Fixed: -35°C to +70°C
Maximum Short Circuit Temperature: +250°C (max 5 seconds)
Minimum Bend Radius: Single core: 15 x overall diameter; Multi core: 12 x overall diameter
Conductor: Class 2 stranded Aluminium* conductor
Insulation: XLPE
Sheath: PVC

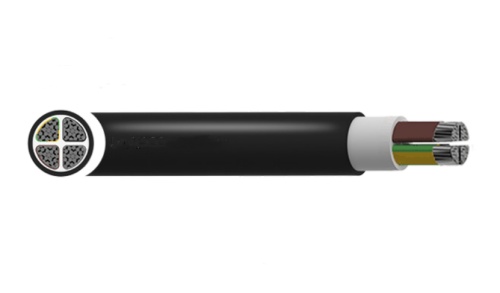

Core Identification:
NA2XY-J:
3 core: Blue Brown Green/Yellow
4 core: Brown Black Grey Green/Yellow
NA2XY-O:
2 core: Blue Brown
3 core: Brown Black Grey
4 core: Brown Black Grey Blue
Sheath Colour: Black
STANDARDS
IEC 60502-1, VDE 0276-603
Flame retardant according to IEC/EN 60332-1-2
Voltage Rating: AC: 1.8/3 (3.6)kV; DC. 2.7/5.4 kV
Temperature Range: Maximum Conductor Operating Temperature: +90ºC; Maximum Conductor Temperature During S.C: +250°C
Minimum Bending Radius: 15 x Overall Diameter
Conductor: Class 2 Stranded Plain Aluminium Circular Compact Conductor
Insulation: XLPE
Sheath: PVC
Sheath Colour: Black
STANDARDS:
IEC 60502-1, IEC 60228,
UV resistant ISO 4892
1.8/3 (3.6)kV NA2XY Cable Data Sheet
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OUTER DIAMETER | NOMINAL WEIGHT |
| mm2 | mm | kg/km | |
| 1 | 16 | 10.9 | 140 |
| 1 | 25 | 12 | 180 |
| 1 | 35 | 13.1 | 215 |
| 1 | 50 | 14.4 | 265 |
| 1 | 70 | 16.2 | 350 |
| 1 | 95 | 17.7 | 430 |
| 1 | 120 | 19.3 | 530 |
| 1 | 150 | 21.5 | 635 |
| 1 | 185 | 22.6 | 750 |
| 1 | 240 | 25.2 | 935 |
| 1 | 300 | 27.5 | 1125 |
| 1 | 400 | 30.4 | 1410 |
| 1 | 500 | 34.3 | 1775 |
| 1 | 630 | 38.4 | 2280 |
| 1 | 800 | 43.8 | 2945 |
| 1 | 1000 | 50.7 | 3710 |
0.6/1kV NA2XY Cable Data Sheet
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT | |
| mm2 | kg/km | ||
| Phase Conducto | Earth Conductor | ||
| 1 | 95 | – | 390 |
| 1 | 120 | – | 465 |
| 1 | 150 | – | 580 |
| 1 | 185 | – | 715 |
| 1 | 240 | – | 905 |
| 1 | 300 | – | 1120 |
| 1 | 400 | – | 1440 |
| 1 | 500 | – | 1770 |
| 1 | 630 | – | 2180 |
| 3 | 70 | 35 | 1450 |
| 3 | 95 | 50 | 1910 |
| 3 | 120 | 70 | 2410 |
| 3 | 150 | 70 | 3535 |
| 3 | 185 | 95 | 3810 |
| 3 | 240 | 120 | 4880 |
| 3 | 300 | 150 | 5610 |
| 4 | 16 | 16 | 675 |
| 4 | 25 | 16 | 910 |
| 4 | 35 | 16 | 1120 |
| 4 | 50 | 25 | 1475 |
| 4 | 70 | 35 | 1985 |
| 4 | 95 | 50 | 2580 |
| 4 | 120 | 70 | 3175 |
| 4 | 150 | 70 | 4035 |
| 4 | 185 | 95 | 4945 |
| 4 | 240 | 120 | 6425 |
| 4 | 300 | 150 | 7910 |
