Application
Flame-retardant and halogen-free medium voltage cables designed for fixed installation in conditions where oil and gas rigs are usually working. Suitable for use in extreme temperatures, saline atmospheres, and where UV radiation, hydrocarbons, oils and drilling fluids and muds are present, meeting the requirements of NEK606.

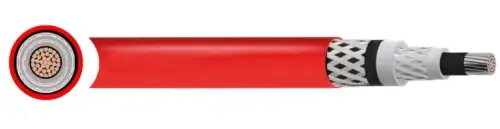

NEK606 RFOU P103 6/10kV Cable
Rated Voltage: 6/10kV
Conductor: Class 2 Annealed Tinned Copper
Semiconductors: HF (Halogen Free) extruded compound
Insulation: HEPR HF (Hard Ethylene Propylene Rubber Halogen Free) Compound
Screen: TCWB (Tinned Copper Wire Braid)
Bedding & Fillers: Fiberglass Tape + Fiberglass Fillers (Extruded) HEPR sheathed when 3 cores
Inner Sheath: SHF2 extruded compound
Armour: TCWB (Tinned Copper Wire Braid)
Outer Sheath: SHF2 H-M compound
NEK606 RFOU P104 8.7/15kV Cable
Rated Voltage: 8.7/15kV
Conductor: Class 2 Annealed Tinned Copper
Semiconductors: HF (Halogen Free) extruded compound
Insulation: HEPR HF (Hard Ethylene Propylene Rubber Halogen Free) Compound
Screen: TCWB (Tinned Copper Wire Braid)
Bedding & Fillers: Fiberglass Tape + Fiberglass Fillers (Extruded)
Inner Sheath: SHF2 extruded compound
Armour: TCWB (Tinned Copper Wire Braid)
Outer Sheath: SHF2 H-M compound
NEK606 RFOU P113 18/30kV Cable
Rated Voltage: 18/30kV
Conductor: Class 2 Annealed Tinned Copper
Semiconductors: HF (Halogen Free) extruded compound
Insulation: HEPR HF (Hard Ethylene Propylene Rubber Halogen Free) Compound
Screen: TCWB (Tinned Copper Wire Braid)
Bedding & Fillers: Fiberglass Tape + Fiberglass Fillers (Extruded)
Inner Sheath: SHF2 extruded compound
Armour: TCWB (Tinned Copper Wire Braid)
Outer Sheath: SHF2 H-M compound
NEK606 RFOU P102 3.6/6kV Cable
Voltage Rating Uo/U: 3.6/6.6kV
Conductor: Class 2 Annealed Tinned Copper
Semiconductors: HF (Halogen Free) extruded compound
Insulation: HEPR HF (Hard Ethylene Propylene Rubber Halogen Free) Compound
Screen: TCWB (Tinned Copper Wire Braid)
Bedding & Fillers: Fiberglass Tape + Fiberglass Fillers (Extruded) HEPR sheathed when 3 cores
Inner Sheath: SHF2 extruded compound
Armour: TCWB (Tinned Copper Wire Braid)
Outer Sheath: SHF2 H-M compound
NEK606 RFOU P112 12/20kV Cable
Voltage Rating Uo/U: 12/20kV
Conductor: Class 2 Annealed Tinned Copper
Semiconductors: HF (Halogen Free) extruded compound
Insulation: HEPR HF (Hard Ethylene Propylene Rubber Halogen Free) Compound
Screen: TCWB (Tinned Copper Wire Braid)
Bedding & Fillers: Fiberglass Tape + Fiberglass Fillers (Extruded)
Inner Sheath: SHF2 extruded compound
Armour: TCWB (Tinned Copper Wire Braid)
Outer Sheath: SHF2 H-M compound
| 6/10kV Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL WEIGHT kg/km |
| 1 | 25 | 1140 |
| 1 | 35 | 1360 |
| 1 | 50 | 1505 |
| 1 | 70 | 1810 |
| 1 | 95 | 2125 |
| 1 | 120 | 2460 |
| 1 | 150 | 2855 |
| 1 | 185 | 3345 |
| 1 | 240 | 4030 |
| 1 | 300 | 4795 |
| 3 | 25 | 3465 |
| 3 | 35 | 4065 |
| 3 | 50 | 4645 |
| 3 | 70 | 5695 |
| 3 | 95 | 6780 |
| 3 | 120 | 7745 |
| 3 | 150 | 8765 |
| 3 | 185 | 10360 |
| 8.7/15kV Cable | ||
| 1 | 25 | 1330 |
| 1 | 35 | 1565 |
| 1 | 50 | 1720 |
| 1 | 70 | 2030 |
| 1 | 95 | 2355 |
| 1 | 120 | 2790 |
| 1 | 150 | 3110 |
| 1 | 185 | 3630 |
| 1 | 240 | 4335 |
| 1 | 300 | 5100 |
| 3 | 25 | 4140 |
| 3 | 35 | 4850 |
| 3 | 50 | 5475 |
| 3 | 70 | 6340 |
| 3 | 95 | 7530 |
| 3 | 120 | 8610 |
| 3 | 150 | 9540 |
| 18/30kV Cable | ||
| 1 | 50 | 2445 |
| 1 | 70 | 2790 |
| 1 | 95 | 3145 |
| 1 | 120 | 3520 |
| 1 | 150 | 3860 |
| 1 | 185 | 4390 |
| 1 | 240 | 5295 |
| 1 | 300 | 6145 |
| 3 | 50 | 7645 |
| 3 | 70 | 8710 |
| 3 | 95 | 9915 |
| 3 | 120 | 11030 |
| 3 | 150 | 12080 |
For technical parameters of other voltage cables or if you wish to customize one, please contact us directly via email: sales@huadongcablegroup.com
