Applications

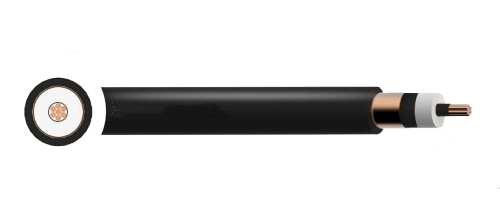

NF C33-224 / NF C33-225 cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.
Rated Voltage Uo/U (Um):
3.6/6 (7.2kV)
6/10 (12kV)
Temperature Rating: Fixed: -20°C to +70°C
Conductor: Stranded bare or tinned copper conductor
Inner Semi-Conductor: Extruded semi-conducting compound
Insulation: XLPE – EPDM on request
Outer Semi-Conductor: Extruded semi-conducting compound
Shield: Copper tape shield – Copper wire screen on request.
Sheath: XLPE – PVC/HFFR/CR on request.
| VOLTAGE | NOMINAL CROSS SECTIONAL AREA | NO. OF STRANDS | NOMINAL WEIGHT |
| kV | mm2 | kg/km | |
| 3.6/6 | 6 | 7 | 198 |
| 6/10 | 6 | 7 | 250 |
