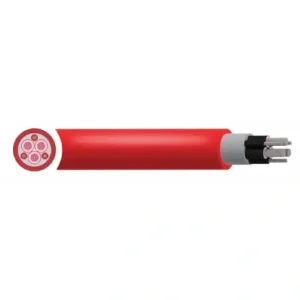

The medium voltage (N)TSCGEWÖU flexible mining, drilling and tunnelling cables is for monospiral drum and trailing operations for use in surface or underground installations. It is suited to installations under both environmental and mechanical stresses generally associated with the mining industry.
Voltage: 3.6/6kV; 6/10kV, 8.7/15kV, 12/20kV, 18/30kV
Conductor: Class 5 flexible stranded tinned copper
Insulation: Rubber compound
Semi-Conductive Layers:
Semi-conductive tape over the conductor and inner and outer
Semi-conductive rubber layer on the insulation
Earth Conductor: Class 5 tinned copper conductor
Central Filler: Semi-conductive compound on a textile polyester support
Inner Sheath: Rubber compound
Anti-Torsion Braid: Polyester
Outer Sheath: Rubber compound

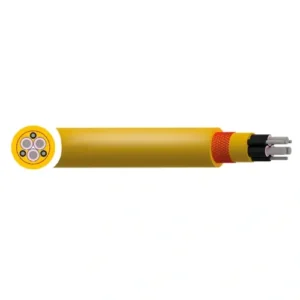

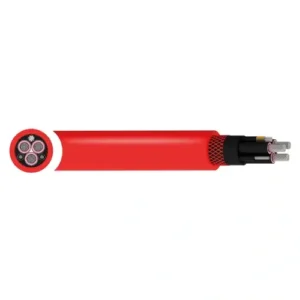

Conductor: Annealed class 5 flexible stranded tinned or bare copper
Separator: Semi-conductive tape
Conductor Screen: Semi-conductive layer of special rubber
Insulation: Special EPDM rubber
Insulation Screen: Semi-conductive, special strippable layer
Earth Conductor: Class 5 tinned or bare copper with extruded special semi-conductive rubber compound
Fiber Optic Module: A-D(ZN)13Y 6, 12, 18 or 24 fibers G50/125, G62,5/125 or E9/125
Inner Sheath: A special synthetic thermosetting compound type 5GM3
Anti-Torsion Braid: Braid of polyamide threads
Outer Sheath: Special synthetic thermosetting compound 5GM5

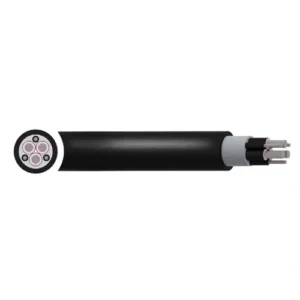

Phase Conductor: Class 5 tinned copper conductor
Insulation: Rubber compound
Semi-Conductive Layers:
Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
Earth Conductor: Class 5 tinned copper conductor
Central Filler: Semi-conductive compound on a textile polyester support
Inner Sheath: EPR rubber compound water proofing
Outer Sheath: CM rubber compound water proofing
Phase Conductor: Class 5 tinned copper
Insulation: Rubber compound
Semi-Conductive Layers:
Semi-conductive tape over the conductor and inner and outer semi-conductive rubber layer on the insulation
Earth Conductor: Class 5 tinned copper conductor
Central Filler: Semi-conductive compound on a textile polyester support
Inner Sheath: Rubber compound / Halogen-free polyurethane
Anti-Torsion Braid: Polyester braid between the inner and outer sheath
Outer Sheath: Abrasion resistant rubber compound / Halogen-free polyurethane
(N)TSCGEWÖU Cable Partial Parameter Table
| NO.OF CORES | NOMINAL CROSS SECTIONAL AREA (mm²) | NOMINAL WEIGHT (kg/km) | |
| (PHASE + EARTH) | Phase Conductor | Earth Conductor | |
| 3.6/6 kv | |||
| 3+3 | 25 | 25/3 | 2380 |
| 3+3 | 35 | 25/3 | 2920 |
| 3+3 | 50 | 25/3 | 3520 |
| 3+3 | 70 | 35/3 | 4430 |
| 3+3 | 95 | 50/3 | 5580 |
| 3+3 | 120 | 70/3 | 6770 |
| 3+3 | 150 | 70/3 | 8260 |
| 3+3 | 185 | 95/3 | 9400 |
| 6/10 kv | |||
| 3+3 | 25 | 25/3 | 2380 |
| 3+3 | 35 | 25/3 | 2920 |
| 3+3 | 50 | 25/3 | 3520 |
| 3+3 | 70 | 35/3 | 4430 |
| 3+3 | 95 | 50/3 | 5640 |
| 3+3 | 120 | 70/3 | 6830 |
| 3+3 | 150 | 70/3 | 8320 |
| 3+3 | 185 | 95/3 | 9500 |
| 8.7/15 kv | |||
| 3+3 | 25 | 25/3 | 2860 |
| 3+3 | 35 | 25/3 | 3210 |
| 3+3 | 50 | 25/3 | 3830 |
| 3+3 | 70 | 35/3 | 5000 |
| 3+3 | 95 | 50/3 | 5870 |
| 3+3 | 120 | 70/3 | 7370 |
| 3+3 | 150 | 70/3 | 8590 |
| 3+3 | 185 | 96/3 | 9750 |
| 12/20 kv | |||
| 3+3 | 25 | 25/3 | 3080 |
| 3+3 | 35 | 25/3 | 3460 |
| 3+3 | 50 | 25/3 | 4310 |
| 3+3 | 70 | 35/3 | 5310 |
| 3+3 | 95 | 50/3 | 6180 |
| 3+3 | 120 | 70/3 | 7730 |
| 3+3 | 150 | 70/3 | 8970 |
