Applications

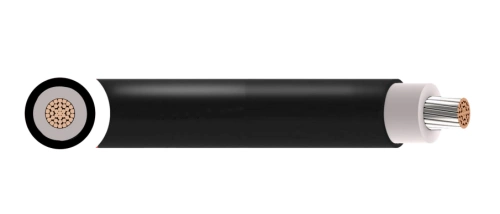

Medium voltage cable available in single and multicores suitable for applications under torsional stresses, for energy transmission and loop applications. Oil, ozone and UV resistant.
Rated Voltage Uo/U: 3.6/6kV
Temperature Rating: -40°C +90°C
Conductor: Stranded Tinned Copper Wires
Insulation: Special EPR (Ethylene Propylene Rubber)
Outer Sheath: CM/CR (ChloroPolyethylene / Polychloroprene)
Sheath Colour: Black
STANDARDS: DIN VDE 0250-813, DIN VDE 0295
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA SIZE | NOMINAL WEIGHT |
| mm² | kg/km | |
| 1 | 240 | 3100 |
| 1 | 300 | 3800 |
| 3 | 35/35 | 5723 |
| 3 | 50/50 | 6596 |
| 3 | 70/70 | 7881 |
| 3 | 35/95 | 10612 |
