Application
These cables used for connecting instruments and control systems for analogue or digital signal transmission for indoor and outdoor applications.These cables shall not be connected directly to mains electricity supply or other low impedance sources, since they are not designed to be used for power supply.
RE-2Y(St)Y-fl
Rated Voltage: 500 V
CONDUCTOR :Electrolytic, stranded, annealed plain copper wires to IEC 60228 Class 2 (Class 1 or Class 5 and / or tinned on request)
INSULATION :PE-Polyethylene compound to EN50290-2-23 Black / White twisted pairs with numbered cores
BINDER TAPE :Polyester foil on overall cable core formed by stranded pairs.
COLLECTIVE SCREEN :Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
OUTER SHEATH :Flame retardant PVC compound to EN50290-2-22 Blue for intrinsically safe cable Black for UV resistant and/or non-instrinsically safe cable Other colours on request

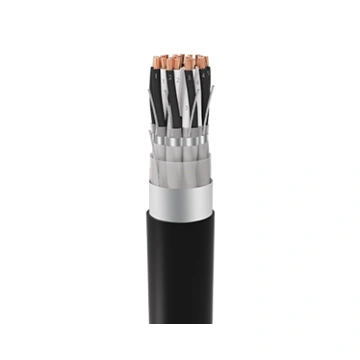

RE-2Y(St)Y-fl PIMF
Rated Voltage: 500 V
CONDUCTOR :Electrolytic, stranded, annealed plain copper wires to IEC 60228 Class 2 (Class 1 or Class 5 and / or tinned on request)
INSULATION :PE-Polyethylene compound to EN50290-2-23 Black / White twisted pairs with numbered cores
BINDER TAPE :Polyester foil on each twisted pair
INDIVIDUAL SCREEN :Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
BINDER TAPE :Polyester foil on overall cable core formed by stranded pairs
COLLECTIVE SCREEN :Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
OUTER SHEATH :Flame retardant PVC compound to EN50290-2-22 Blue for intrinsically safe cable Black for UV resistant and/or non-instrinsically safe cable Other colours on request

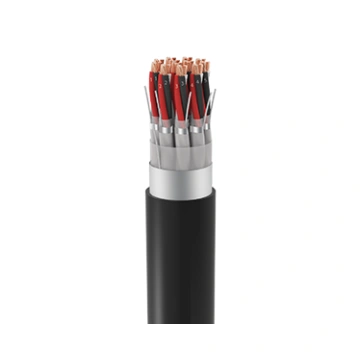

RE-2Y(St)Y-fl TIMF
Rated Voltage: 500 V
CONDUCTOR :Electrolytic, stranded, annealed plain copper wires to IEC 60228 Class 2 (Class 1 or Class 5 and / or tinned on request)
INSULATION :PE-Polyethylene compound to EN50290-2-23 Black / White / Red twisted triads with numbered cores
BINDER TAPE :Polyester foil on each twisted triad
INDIVIDUAL SCREEN :Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
BINDER TAPE :Polyester foil on overall cable core formed by stranded triples
COLLECTIVE SCREEN :Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
OUTER SHEATH :Flame retardant PVC compound to EN50290-2-22 Blue for intrinsically safe cable Black for UV resistant and/or non-instrinsically safe cable Other colours on request
| RE-2Y(St)Y-fl Partial parameter table | ||
| Cross Sections (mm2) | Nominal Overall Diameter (mm) | Approximate Weight (kg/km) |
| 1x2x0,5 | 6 | 44 |
| 2x2x0,5 | 8.8 | 76 |
| 4x2x0,5 | 10.3 | 115 |
| 16x2x0,5 | 17.8 | 338 |
| 20x2x0,5 | 20 | 416 |
| 24x2x0,5 | 22.2 | 495 |
| 8x2x0,75 | 15.6 | 261 |
| 10x2x0,75 | 17.6 | 313 |
| 12x2x0,75 | 18.4 | 365 |
| 16x2x0,75 | 20.3 | 456 |
| 20x2x0,75 | 22.8 | 562 |
| 24x2x0,75 | 25.4 | 671 |
| 12x2x1 | 19 | 420 |
| 16x2x1 | 21.3 | 540 |
| 20x2x1 | 23.9 | 665 |
| 24x2x1 | 26.6 | 793 |
| 1x2x1,3 | 7.5 | 72 |
| 2x2x1,3 | 10.9 | 126 |
| 4x2x1,3 | 12.9 | 204 |
| 20x2x1,3 | 25.6 | 820 |
| 24x2x1,3 | 28.5 | 977 |
| 1x2x1,5 | 7.7 | 76 |
| 2x2x1,5 | 11.3 | 135 |
| 4x2x1,5 | 13.3 | 220 |
| 16x2x1,5 | 23.8 | 736 |
| 20x2x1,5 | 26.7 | 908 |
| 24x2x1,5 | 29.7 | 1083 |
| 1x2x2,5 | 8.9 | 103 |
| 2x2x2,5 | 13.4 | 193 |
| 4x2x2,5 | 15.9 | 324 |
| 20x2x2,5 | 32.3 | 1380 |
| 24x2x2,5 | 36 | 1646 |
| RE-2Y(St)Y-fl PIMF Partial parameter table | ||
| Cross Sections (mm2) | Nominal Overall Diameter (mm) | Approximate Weight (kg/km) |
| 2x2x0,5 | 10.1 | 96 |
| 4x2x0,5 | 11.7 | 145 |
| 5x2x0,5 | 13 | 177 |
| 6x2x0,5 | 14.1 | 205 |
| 8x2x0,5 | 16 | 263 |
| 10x2x0,5 | 18.2 | 325 |
| 12x2x0,5 | 18.8 | 370 |
| 16x2x0,5 | 21.1 | 474 |
| 2x2x0,75 | 11.2 | 115 |
| 4x2x0,75 | 13.2 | 184 |
| 5x2x0,75 | 14.4 | 217 |
| 6x2x0,75 | 16 | 260 |
| 8x2x0,75 | 18.1 | 322 |
| 2x2x1 | 11.6 | 126 |
| 4x2x1 | 13.7 | 204 |
| 5x2x1 | 15 | 242 |
| 24x2x1 | 31 | 998 |
| 2x2x1,3 | 12.5 | 150 |
| 4x2x1,3 | 14.5 | 237 |
| 20x2x1,3 | 30 | 1010 |
| 24x2x1,3 | 33.4 | 1205 |
| 12x2x1,5 | 24.6 | 684 |
| 16x2x1,5 | 27.5 | 883 |
| 20x2x1,5 | 30.9 | 1090 |
| 24x2x1,5 | 34.7 | 1317 |
| 20x2x2,5 | 37.4 | 1602 |
| 24x2x2,5 | 41.7 | 1910 |
| RE-2Y(St)Y-fl TIMF Partial parameter table | ||
| Cross Sections (mm2) | Nominal Overall Diameter (mm) | Approximate Weight (kg/km) |
| 2x3x0,5 | 11 | 115 |
| 4x3x0,5 | 13 | 186 |
| 5x3x0,5 | 14.2 | 220 |
| 6x3x0,5 | 15.6 | 262 |
| 2x3x0,75 | 12.1 | 140 |
| 4x3x0,75 | 14.4 | 230 |
| 5x3x0,75 | 15.9 | 282 |
| 16x3x0,75 | 26.3 | 790 |
| 20x3x0,75 | 29.5 | 973 |
| 24x3x0,75 | 32.9 | 1160 |
| 2x3x1 | 12.7 | 160 |
| 4x3x1 | 14.8 | 258 |
| 20x3x1 | 30.5 | 1110 |
| 24x3x1 | 34.2 | 1342 |
| 2x3x1,3 | 13.5 | 187 |
| 16x3x1,3 | 29.1 | 1100 |
| 20x3x1,3 | 32.7 | 1356 |
| 24x3x1,3 | 36.5 | 1620 |
| 2x3x1,5 | 14 | 200 |
| 4x3x1,5 | 16.6 | 340 |
| 20x3x1,5 | 34.4 | 1493 |
| 24x3x1,5 | 38.4 | 1782 |
| 2x3x2,5 | 16.7 | 285 |
| 4x3x2,5 | 19.8 | 490 |
| 5x3x2,5 | 21.9 | 603 |
| 6x3x2,5 | 24.1 | 718 |
| 24x3x2,5 | 46.3 | 2650 |
