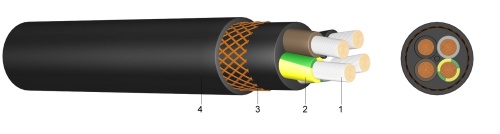

The NSHTOU cable (alternative spelling NSHTOEU), available both with a reinforced heavy-duty rubber sheathing and with PUR, can be used wherever cables are frequently reeled, unreeled, or guided by roller trains.
0.6/1kV Nshtou cable
Insulation : Rubber compound Type 3GI3
Filler:EPR (Ethylene Propylene Rubber) Type 3GI3, on a textile polyester support
Bedding: Rubber compound Type GM1b
Braiding: Polyester braid
Sheath: Rubber compound Type 5GM3
8. Outer sheath: PUR double layer with anti twisting reinforcement; Colour: red
Core Identification
NSHTÖU-J
4 core: Green/Yellow Black Grey Brown
5 core: Green/Yellow Black Blue Brown Grey
Other sizes available
NSHTÖU-O
4 core: Grey Brown Black Blue
5 core: Grey Brown Black Blue Black

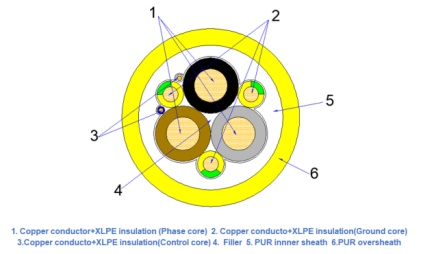

0.6/1(1.2) KV Reeling Cable Buflex M
Conductor: Flexible bare copper Class 5(IEC 60228)
Insulation: XLPE
Inner sheath: Polyurethane thermoplastic compound
Outer sheath: Flame retardant polyurethane(oil and UV resistant); Colour : Yellow
Cores identification
Phase cores: brown – black – grey
Earth cores : yellow/green
Pilot cores : white – blue

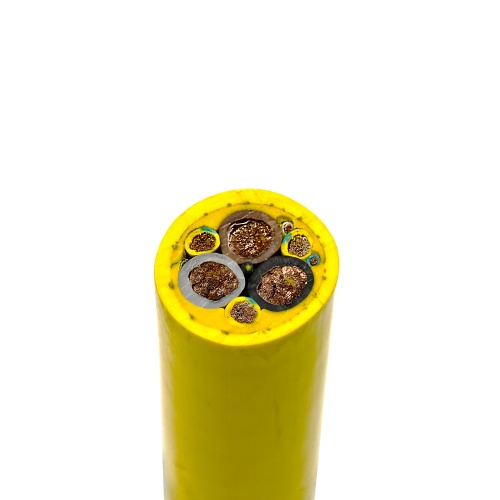

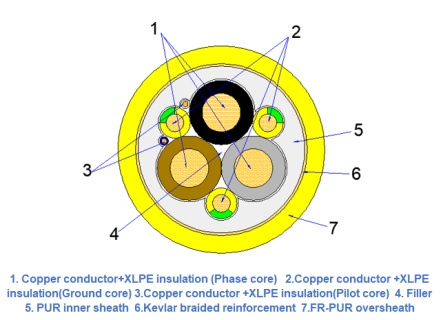

0.6/1(1.2) KV Control and Power Reeling Cable Buflex X’Prem Cable
Conductor: Flexible bare copper Class 5(IEC 60228)
Insulation: XLPE
Inner sheath: Polyurethane thermoplastic compound
Outer sheath: Double layer with anti-twisting reinforcement PU; Colour : Yellow
Cores identification
Control: white with printed numbers
Power
4 cores: black – brown – grey – green/yellow (3 earth cores for sizes >25 mm2)
5 cores: black – brown – grey – blue – green/ yellow
0.6/1(1.2) KV Control and Power Reeling Cable Buflex DGR Cable
Conductor: Flexible plain copper, class 5 IEC 60228
Insulation: XLPE
Filler + Inner Sheath
Reinforcement：Anti twist element
Inner sheath: Polyurethane thermoplastic compound
Outer sheath: PUR; Colour : Yellow
Cores identification
Control: white with printed numbers
Power
4 cores: black – brown – grey – green/yellow (3 earth cores for sizes >25 mm2)
5 cores: black – brown – grey – blue – green/ yellow

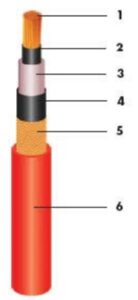

1.8/3 (3.6) kV – 12/20 (24) kV Flexible Single Core Cable Buflex SC Cable
1 Conductor: Flexible, plain copper Class 5 IEC 60228
2 Semi conductive layer
3 Insulation: EPR
4 Semi conductive layer
5 Screen : Copper braid or spinning
6 Outer sheath : PUR; Colour: red
Oil resistant.
For indoor and outdoor applications. Moisture, UV and ozone resistance.

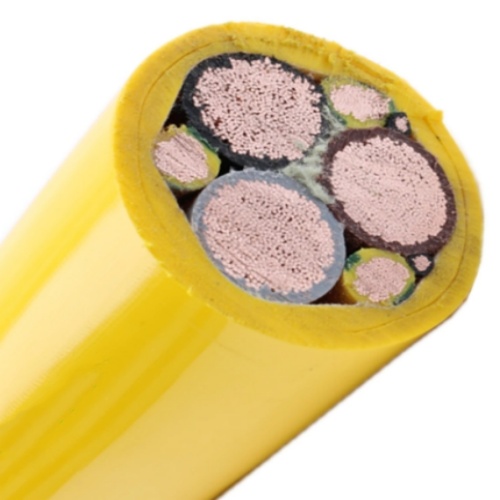

3.6/6 KV – 12/20 KV Reeling Cable Buflex SEM Cable
1 Conductor: Flexible plain copper class 5 IEC 60228
2 Semi conductive layer
3. Insulation : EPR
4. Semi conductive layer
5. Protective earth conductor : Flexible plain copper class 5 IEC 60228
6. Semi conductive layer : On earth conductors
7. Outer sheath：PUR Double layer with anti twisting reinforcement; Colour: red
Oil resistant.
For indoor and outdoor applications. Moisture, UV and ozone resistance.

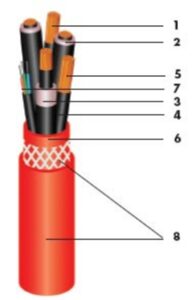

12/20 (24) kV Reeling Cables with integrated Optical Fibres Buflex SEM OFE Cable
1. Conductor : Flexible plain copper class 5; IEC 60228
2. Semi conductive layer
3. Insulation : EPR
4. Semi conductive layer
5. Protective earth conductor : Flexible plain copper class 5 IEC 60228
6. Semi-conductive : On earth conductor
7. Optical Fibers Element : Multimode 62.5/125 μm
8. Outer sheath: PUR double layer with anti twisting reinforcement; Colour: red
