Applications

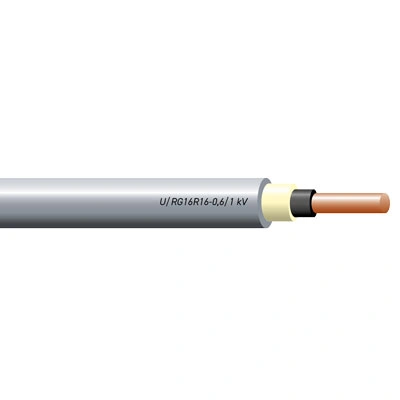

RG16R16 / UG16R16Power cables, rubber insulated (G18), M16 thermoplastic sheathed, with solid conductors for fixed installation. Fire retardant with low emission of smoke and toxic and corrosive gases and fumes (non-toxic – halogen-free – LSOH).
For internal and external installations, also in wet locations and for external installations; for fixed installation in surface mounted or on metallic structures; direct laying in earth permitted.
UG16/RG16 cables are suitable for general applications in construction works subject to fire reaction requirements; for bundle installations with high fire risk, having fire reaction class Cca-s1b,d1,a1.
Rated voltage: 0,6/1 kV
Min. installation temperature: 0°C
Min. working temperature: -15°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Conductor:
UG16R16: Solid, plain copper single wire, class 1
RG16R16: Stranded, plain copper wire, class 2
Insulation: Hard ethylene propylene rubber (HEPR) compound, of type G16
Filler: Thermoplastic filler with reduced emission of corrosive gases
Sheath: PVC type R16 with reduced emission of halogen (corrosive gases)
| Conductor cross-sections | MAX. Ø conductor wires | Outer diameter | Approx. cable weight |
| mm | MAX mm | g/m | |
| UG16R16-0,6/1 kV | |||
| 1 core x mm2 | |||
| 1,5 | 1 | 7.9 | 51 |
| 2,5 | 1 | 8.4 | 79 |
| 4 | 1 | 9 | 96 |
| 6 | 1 | 9.6 | 117 |
| RG16R16-0,6/1 kV | |||
| 1 core x mm2 | |||
| 10 | 6 | 10.5 | 172 |
| 16 | 6 | 11,0 | 235 |
| 25 | 6 | 12.7 | 334 |
| 35 | 6 | 14,0 | 434 |
| 50 | 6 | 15,7 | 550 |
| 20 | 12 | 17.6 | 760 |
| 95 | 15 | 19.6 | 1017 |
| 120 | 18 | 21.5 | 1160 |
| 150 | 18 | 23.8 | 1548 |
| 185 | 30 | 26.2 | 1900 |
| 240 | 34 | 29.1 | 2500 |
| 300 | 34 | 31,7 | 3100 |
| 400 | 53 | 36,2 | 4100 |
| 500 | 53 | 39.8 | 5100 |
| 630 | 53 | 44,1 | 6200 |
