Aluminium Medium Voltage cable, XLPE insulation, halogen free, hydrocarbon resistant.

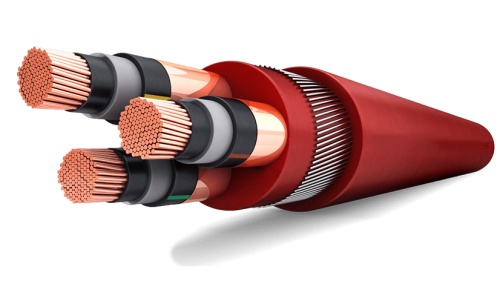

RHVhMVh Copper cable for the transmission and distribution of electricity in a medium voltage network. This cable is recommended for installations where there may be a risk of oils and/or hydrocarbon type chemical agents coming into contact with the cable.
Voltage: 6/10 kV, 8,7/15 kV, 12/20 kV and 18/30 kV
Conductor: Electrolytic annealed copper, class 2
Internal semiconductor: Screen over the conductor, made of thermosetting semiconductor material.
Insulation: XLPE
External semiconductor: Screen over the insulation, made of thermosetting and strippable semiconductor material.
Cable conductor identification: The conductors are identified with a tape placed along the cable between the external semiconductor and the metallic screen. Colors are; brown, green and yellow.
Metallic screen: Screen of copper tape. It consists in two copper tapes of 0,1 mm of thickness placed helicoidally and overlapped (H1 screen) over the outer semi-conducting screen.
Cabling: The three conductors are wound helicoidally with their screens in contact.
Bedding: The special PVC compound bedding gives a high level of resistance to hydrocarbons and mineral oils.
Armour: Galvanized steel wire wrapped helicoidally around the cable and fixed with a counter-wound metal tape.
Outer sheath: The special PVC outer sheath compound gives a high level of resistance to hydrocarbons and mineral oils. Red color.
Standard: IEC 60502-2 / Repsol ED-P-10.01-01
| Thermal performance | Maximum conductor temperature: 90ºC. |
| Maximum short-circuit temperature: 250ºC (max. 5 s). | |
| Minimum service temperature: -15ºC | |
| Fire performance | Flame non-propagation according to EN 60332-1/IEC 60332-1. |
| Fire non-propagation according to EN 60332-3 / IEC 60332-3. | |
| Reduced halogen emission. Chlorine < 15%. | |
| Mechanical performance | Minimum bending radius: x15 cable diameter. |
| Abrasion resistant. | |
| Tear resistant. | |
| Chemical performance | Chemical resistance: Excellent. |
| Oil resistant: according to UIC 895 OR. | |
| Installation conditions | Open Air. |
| Buried. | |
| In conduit. | |
| Applications | Distribution networks |
| Other | Meter by meter marking. |
