Application
Spanish / Portuguese reference low voltage power distribution cable for use in low voltage power distribution in permanent indoor and outdoor fixed installations, protected or not, in industrial areas, buildings, and similar applications. Suitable for photovoltaic installations.
Voltage Rating: 0.6/1kV
Maximum pulling force over conductor (N):
Over conductors: 30 x Section mm2
Over sheath: 3 x d2

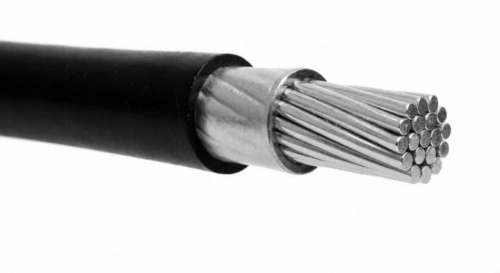

Conductor: Class 2 Stranded circular or sector-shaped Aluminium
Insulation: XLPE
Sheath: PVC type ST2, UV resistant
STANDARDS:
IEC 60502-1, IEC 60228, HD 308.S2, TS 173:01-2020,
UNE HD 603-5N,
UV Resistant
Fire Performance : UNE-EN 60332-1, EN/IEC 60332-1-2
| NO.OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm² | kg/km | |
| 1 | 16 | 103 |
| 1 | 25 | 144 |
| 1 | 35 | 181 |
| 1 | 50 | 223 |
| 1 | 70 | 301 |
| 1 | 95 | 394 |
| 1 | 120 | 473 |
| 1 | 150 | 590 |
| 1 | 185 | 730 |
| 1 | 240 | 933 |
| 1 | 300 | 1203 |
| 1 | 400 | 1585 |
| 1 | 500 | 2047 |
| 1 | 630 | 2534 |
