Applications
For making connections to electrical equipment used in a wastewater environment and subject to heavy mechanical stress, e.g. submersible pumps in sewage disposal and treatment as well as submersible mixer. Owing to the various (and frequently changing) substances of which the contaminated water is made up, the cables may be used only in easily accessible areas that can be inspected (installation depth of approximately 10 m, as customarily encountered in sewage water tanks). These cables are also suitable for use in process water, cooling water, mine surface water, rainwater and combined waste water. Under certain circumstances they can be suitable for groundwater and seawater; it is possible to impose less stringent specifications in terms of accessibility and inspection. In such cases the cables can be used at depths up to 500 m. If the water concerned is aggressive or composed of special substances, the cables resistance properties should be examined. These cables can be used indoors, outdoors, in explosionhazard areas. In other respects, DIN VDE 0298300 / HD 516 applies.
Test Voltage: 0,6/1 kV
Temperature Range: 90 °C
Conductor : Copper, plain, finely stranded, Class 5
Insulation : Ozone, water and weather resistant insulation compound, base EPR (EthylenePropylene Rubber)
Core identification:
Power cables: Cores colored according to DIN VDE 0293308:2003;
Control cores: Cores light, printed with black numbers.

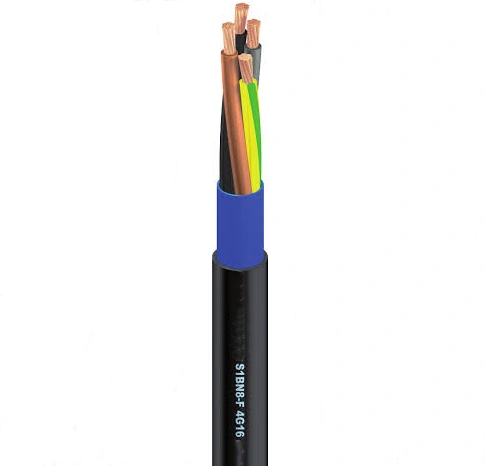

Sheath 2 layer sheath system:
Inner layer: EPR special compound; colour: blue;
Outer layer: CPE special compound; water and oil resistant; colour: black.
| Number of cores and nominal cross-sectional area | Overall diameterof cable | Approx.net weight for 1000 m |
| mm² | Max.value mm | kg |
| S1BN8-F,single-core design | ||
| 1X1.5 | 6.6 | 53 |
| 1X2.5 | 7 | 65 |
| 1X4 | 7.5 | 82 |
| 1X6 | 8 | 103 |
| 1X10 | 9.1 | 160 |
| 1X16 | 10.1 | 210 |
| 1X25 | 12.4 | 315 |
| 1X35 | 13.9 | 421 |
| 1X50 | 15.7 | 577 |
| 1X70 | 18.3 | 808 |
| 1X95 | 20.3 | 1024 |
| 1X120 | 22.9 | 1314 |
| 1X150 | 25.2 | 1627 |
| 1X185 | 28.3 | 1982 |
| 1X240 | 31.2 | 2548 |
| 1X300 | 34.4 | 3151 |
| 1X400 | 38.6 | 4087 |
| 1X500 | 42,7 | 5160 |
| S1BN8-F,two-core design, without PE conductor | ||
| 2X1 | 9 | 94 |
| 2X1.5 | 9.6 | 111 |
| 2X2.5 | 10.4 | 141 |
| 2X4 | 11.8 | 182 |
| 2X6 | 12.8 | 239 |
| 2X10 | 17 | 420 |
| 2X16 | 19.6 | 597 |
| 2X25 | 23.6 | 890 |
| S1BN8-F,three-core design, with PE conductor | ||
| 3X1 | 9.5 | 104 |
| 3X1.5 | 10.1 | 125 |
| 3X2.5 | 11.2 | 162 |
| 3X4 | 12.2 | 216 |
| 3X 6 | 13.7 | 292 |
| 3X 10 | 18.3 | 514 |
| 3X16 | 21.1 | 740 |
| 3X25 | 25.1 | 1094 |
| 3X35 | 28.6 | 1459 |
| 3X50 | 32.9 | 2018 |
| 3X 70 | 38.4 | 2831 |
| 3X95 | 42 | 3547 |
| 3 X 120 | 47.4 | 4542 |
| 3X150 | 53,0 | 5627 |
| 3X185 | 58,2 | 6819 |
| 3X240 | 65,4 | 8645 |
| S1BN8-F,four-core design, with PE conductor | ||
| 4 G 1 | 10,1 | 123 |
| 4 G 1.5 | 11,1 | 148 |
| 4 G 2.5 | 12,1 | 201 |
| 4 G 4 | 13,4 | 276 |
| 4 G 6 | 15,2 | 378 |
| 4 G 10 | 19,8 | 464 |
| 4 G 16 | 22,9 | 934 |
| 4 G 25 | 28，3 | 1418 |
| 4 G 35 | 31,3 | 1877 |
| 4 G 50 | 36，2 | 2613 |
| 4 G 70 | 41,7 | 3638 |
| 4 G 95 | 47,7 | 4643 |
| 4 G 120 | 52,7 | 5833 |
| 4 G 150 | 58,5 | 7222 |
| 4 G 185 | 64,6 | 8830 |
| 4 G 240 | 72,2 | 11457 |
| 4 G 300 | 81,0 | 14368 |
| S1BN8-F,five-core design, with PE conductor | ||
| 5 G1,5 | 12,0 | 186 |
| 5 G2,5 | 13,2 | 250 |
| 5 G 4 | 13,6 | 340 |
| 5 G 6 | 15,3 | 480 |
| 5 G 10 | 21,9 | 810 |
| 5 G 16 | 25,2 | 1192 |
| 5 G 25 | 31,0 | 1810 |
| S1BN8-F,multi core design, with PE conductor, Control Cables | ||
| 7 G 1,5 | 14,5 | 276 |
| 8 G 1,5 | 16,5 | 305 |
| 10 G 1,5 | 17,6 | 376 |
| 11 G 1,5 | 18,0 | 400 |
| 12 G 1,5 | 18,0 | 413 |
| 7 G 2,5 | 16,7 | 381 |
| 8 G 2,5 | 18,3 | 410 |
| 10 G 2,5 | 19,4 | 480 |
| 12 G 2,5 | 19,9 | 555 |
