Voltage: 0.6/1KV, 1.8/3kV, 3.6/6KV, 6/10KV, 8.7/15KV;
Cores: 1.2.3.4.4.7.10.12.14.16.19.24.27.30.33.37
Conductor: tinner copper;
Inner sheathe: PCP/CSP/PVC/PO(SHF1,SHF2)
Insulation: EPR/Rubber/XLPE;
Armored: tinned copper wire braid(Galvanized steel wire braid)
Outer Sheath: PVC/PCP/PO(SHF1, SHF2).
Nominal Cross-section: Areas: 0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2,
35mm2, 50mm2, 70mm2, 95mm2, 120mm2,1 50mm2, 185mm2, 240mm2, 300mm2.

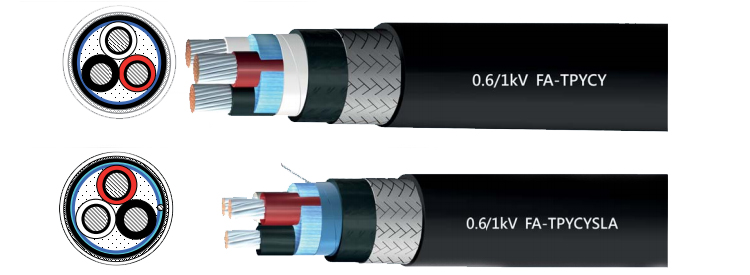

0.6/1kv FR-FA-TPYCY /FA-TPYCY cable
Flammability Features:
DA:Single cable flame retardant
SA:Bunched cable flame retardant
SC:Bunched cable flame retardant,halogen-free,low-smoke,low-toxicity.
0.6/1kv FA-TPYCY/FA-TPYCYSLA Cable
