Applications
1) Cable Tunnels, Ducts & Mezzanines
2) Escalators & Moving Walkways
3) Petro-Chemical Storage Tanks / Rim Seal Protection
4) Paint Shops & Spray Booths
5) Conveyors – Coal, Wood Sulphur.. etc
6) Ceiling Voids & Attic Spaces
7) Road & Rail Tunnel Carriageways
8) Nuclear Reactor Plant Areas
9) Refrigerated Stores & Cold Rooms
10) Electrical Control & Switchgear Cabinets
11) Warehouse High Rise Pallet Racking
12) Oil Rigs & Off Shore Platforms
13) Fume Cupboards & Glove Boxes
14) Grain Silos & Agricultural Storage
15) Road / Rail Vehicle Engine Compartments
16) Steam pipe Leaks & Trace Heating Fauls
17) Product Lines – Flanges, Valves & Pumps
18) Computer Room under Floor Cable Voids

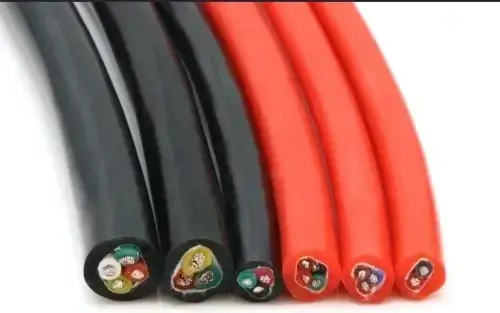

CONSTRUCTION:
Conductor: Class 5 tinned soft copper conductor
Insulation: Silicone rubber
Filling: High-temperature filler cord
Taping: Thin flame-retardant fabric tape
Shielding: Tinned copper wire (≥80% braid density)
Outer jacket: Silicone rubber
| Number of cores | Cross-sectional area mm² | Sheath thickness mm | Approximate cable weight kg/km |
| 2 | 0.5 | 1.4 | 117.6 |
| 2 | 0.75 | 1.4 | 131.3 |
| 2 | 1 | 1.4 | 143.4 |
| 2 | 1.5 | 1.4 | 176.3 |
| 2 | 2.5 | 1.4 | 216.8 |
| 2 | 4 | 1.5 | 280.2 |
| 2 | 6 | 1.5 | 395.7 |
| 2 | 10 | 1.5 | 557.2 |
| 3 | 0.5 | 1.4 | 129.7 |
| 3 | 0.75 | 1.4 | 146.2 |
| 3 | 1 | 1.4 | 161.2 |
| 3 | 1.5 | 1.4 | 200.5 |
| 3 | 2.5 | 1.4 | 251.2 |
| 3 | 4 | 1.5 | 330 |
| 3 | 6 | 1.5 | 468.3 |
| 3 | 10 | 1.7 | 686.7 |
| 4 | 0.5 | 1.4 | 148.6 |
| 4 | 0.75 | 1.4 | 169.2 |
| 4 | 1 | 1.4 | 187.6 |
| 4 | 1.5 | 1.4 | 236.3 |
| 4 | 2.5 | 1.5 | 306.5 |
| 4 | 4 | 1.5 | 413.8 |
| 4 | 6 | 1.5 | 567.5 |
| 4 | 10 | 1.7 | 838.6 |
| 5 | 0.5 | 1.4 | 170.3 |
| 5 | 0.75 | 1.4 | 195.1 |
| 5 | 1 | 1.4 | 217.6 |
| 5 | 1.5 | 1.5 | 283.3 |
| 5 | 2.5 | 1.5 | 377.1 |
| 5 | 4 | 1.5 | 490.9 |
| 5 | 6 | 1.7 | 698.1 |
| 5 | 10 | 1.7 | 1008.7 |
| 6 | 0.5 | 1.4 | 194.3 |
| 6 | 0.75 | 1.4 | 223.7 |
| 6 | 1 | 1.4 | 250.4 |
| 6 | 1.5 | 1.5 | 343 |
| 6 | 2.5 | 1.5 | 438.5 |
| 6 | 4 | 1.5 | 574.4 |
| 6 | 6 | 1.7 | 820.6 |
| 6 | 10 | 1.7 | 1221.9 |
| These are some of our specifications. If you don’t find the specifications you need and need custom cables, please contact us immediately. | |||
