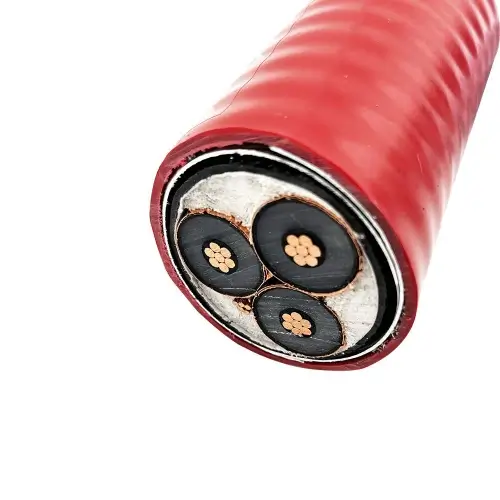

Voltage: 15KV
Conductor: bare copper class B compact or compressed stranded
Conductor Shield: Extruded thermosetting semi-conducting shield
Insulation: 220 miles Tree-retardant cross-linked polyethylene (TR-XLPE), 133% insulation level
Insulation Shield: Extruded thermosetting semi-conducting shield
Ground (Shield): Stranded bare copper wire conductor
Inner jacket: Flame-retardant and moisture resistant polyvinyl chloride(PVC)
Armour: Aluminum interlocked armor (AIA)
Outer jacket: Low temperature, moisture and sunlight resistant polyvinyl chloride (PVC), red
Application:
1 For concealed or exposed wiring in dry or wet locations.
2 For exposed wiring in dry locations where subjected to corrosive action if suitable for corrosive conditions encountered.
3 For exposed wiring where subjected to the weather.
4 For use in ventilated, non-ventilated and ladder-type cable trays in dry or wet locations.
5 For direct earth burial (with protection as required by inspection authority)
6 For service entrance above or below ground
| AWG Size | Insulation | Nominal diameter (mm) | Approxi. weight | ||||
| Cond. | Ground | mm | MIL | Inner jacket | Armor | Outer jacket | Kg/km |
| 2AWG TO 1000KCMIL-THREE CONDUCTOR-133% INSULATION LEVEL, 220 MILS(5.59mm)-15KV | |||||||
| 2 | 6 | 5.59 | 220 | 51.7 | 59.7 | 62.7 | 3944 |
| 1 | 6 | 5.59 | 220 | 53.5 | 61.6 | 64.6 | 4037 |
| 1/0 | 6 | 5.59 | 220 | 55.6 | 63.7 | 66.7 | 4747 |
| 2/0 | 6 | 5.59 | 220 | 57.9 | 66 | 69.6 | 5365 |
| 3/0 | 4 | 5.59 | 220 | 60.5 | 68.7 | 72.2 | 6091 |
| 4/0 | 4 | 5.59 | 220 | 63.3 | 71.6 | 75.2 | 6885 |
| 250 | 4 | 5.59 | 220 | 52.7 | 74 | 77.6 | 7589 |
| 350 | 3 | 5.59 | 220 | 71.7 | 80.1 | 84.2 | 9592 |
| 500 | 3 | 5.59 | 220 | 78.4 | 88.6 | 92.6 | 12160 |
| 750 | 2 | 5.59 | 220 | 87.6 | 98 | 102 | 16312 |
| 1000 | 1 | 5.59 | 220 | 96.7 | 107.3 | 111.3 | 20495 |
