Applications

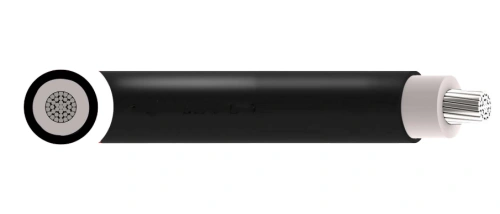

3kV LSZH power cable for applications under torsional stresses. Specifically designed for wind turbines, for transmitting power from generator to transformer at the base of the tower.
Rated Voltage Uo/U: 1.8/3kV
Temperature Rating: -40°C +125°C
Conductor: Class 5/6 Flexible Stranded Tinned Copper
Insulation: EPR (Ethylene Propylene Rubber)
Outer Sheath: HF XL-EVA
Sheath Colour: Black
STANDARDS:
IEC 60502, IEC 60228,
Flame retardant according to IEC 60332-3, CSA C22.2
Low Smoke Zero Halogen according to IEC 60754, IEC 61034
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA SIZE | NOMINAL WEIGHT |
| mm² | kg/km | |
| 1 | 25 | 516 |
| 1 | 35 | 670 |
| 1 | 50 | 840 |
| 1 | 70 | 1112 |
| 1 | 95 | 1520 |
| 1 | 120 | 1880 |
| 1 | 150 | 2513 |
| 1 | 185 | 3272 |
| 1 | 240 | 3534 |
| 1 | 300 | 4020 |
| 400 | 5640 |
