Applications

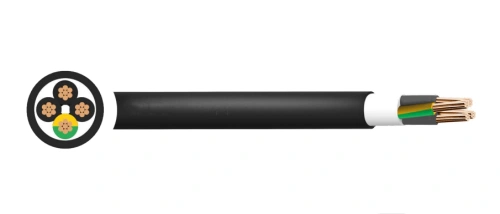

Wind Farm Turbine cables with increased tolerance to torsion as well as being UV and oil resistant. Special PVC remains flexible at low temperatures.
Rated Voltage Uo/U: 600V
Temperature Rating: -40°C +80°C
Conductor: Class 2 Stranded Bare Copper
Insulation: Special PVC (Polyvinyl Chloride)
Outer Sheath: Special PVC (Polyvinyl Chloride)
Sheath Colour: Black
STANDARDS:
UL 758, DIN VDE 0295, IEC 60811-2-1,
Flame retardant according to CSA C 22.2
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA SIZE | NOMINAL WEIGHT | NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA SIZE | NOMINAL WEIGHT |
| mm² | kg/km | mm² | kg/km | ||
| 1 | 35 | 460 | 7 | 0.75 | 170 |
| 1 | 70 | 880 | 7 | 1 | 140 |
| 1 | 95 | 1230 | 7 | 1.5 | 210 |
| 1 | 120 | 1540 | 7 | 2.5 | 360 |
| 1 | 150 | 1870 | 7 | 4 | 530 |
| 1 | 185 | 2300 | 7 | 6 | 780 |
| 1 | 240 | 2970 | 7 | 10 | 1150 |
| 1 | 300 | 3730 | 10 | 0.5 | 165 |
| 1 | 400 | 4500 | 10 | 0.75 | 200 |
| 3 | 0.75 | 77 | 10 | 1 | 220 |
| 3 | 1.5 | 110 | 10 | 1.5 | 270 |
| 3 | 2.5 | 151 | 10 | 2.5 | 480 |
| 3 | 4 | 250 | 12 | 0.5 | 208 |
| 3 | 6 | 340 | 12 | 0.75 | 220 |
| 4 | 0.34 | 86 | 12 | 1 | 240 |
| 4 | 0.5 | 99 | 12 | 1.5 | 360 |
| 4 | 0.75 | 100 | 12 | 2.5 | 580 |
| 4 | 1 | 100 | 12 | 4 | 740 |
| 4 | 1.5 | 131 | 14 | 0.75 | 238 |
| 4 | 2.5 | 230 | 14 | 1 | 280 |
| 4 | 4 | 270 | 14 | 1.5 | 420 |
| 4 | 6 | 460 | 16 | 0.75 | 271 |
| 4 | 10 | 670 | 16 | 1 | 310 |
| 4 | 16 | 1000 | 16 | 1.5 | 450 |
| 4 | 25 | 1580 | 18 | 0.75 | 310 |
| 4 | 35 | 2100 | 18 | 1 | 360 |
| 4 | 50 | 2800 | 18 | 1.5 | 510 |
| 5 | 0.75 | 120 | 19 | 2.5 | 690 |
| 5 | 1 | 110 | 21 | 0.75 | 380 |
| 5 | 1.5 | 165 | 21 | 1 | 410 |
| 5 | 2.5 | 250 | 21 | 1.5 | 590 |
| 5 | 4 | 370 | 25 | 0.75 | 490 |
| 5 | 6 | 550 | 25 | 1 | 500 |
| 5 | 10 | 870 | 25 | 1.5 | 700 |
| 5 | 16 | 1250 | 40 | 1 | 800 |
| 5 | 25 | 1900 | 41 | 1.5 | 1050 |
| 5 | 35 | 2600 | 50 | 0.75 | 990 |
