Applications

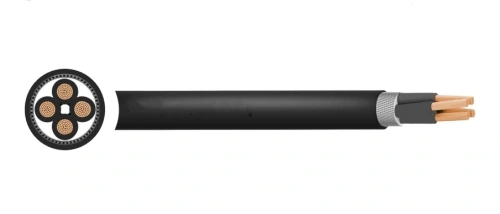

Torsion resistant loop screened power cables are designed for special application conditions in wind turbines where under medium mechanical stress and for operation outdoors or under permanent influence of seawater. Oil, UV, Ozone resistant.
Rated Voltage Uo/U: 0.6/1kV
Temperature Rating: -40°C +90°C
Conductor: Stranded bare copper
Insulation: EPR (Ethylene Propylene Rubber)
Screen: TWCB (Tinned wire copper braid)
Sheath: HF-EVA (Halogen Free Ethylene-Vinyl Acetate)
Sheath Colour: Black
STANDARDS:
IEC 60502-1, IEC 60228, EN 50363, HD 22.13,
Flame retardant according to IEC 60332-1
Low Smoke Zero Halogen according to IEC 60754, IEC 61034
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA SIZE | NOMINAL WEIGHT |
| mm² | kg/km | |
| 4 | 1.5 | 150 |
| 4 | 4 | 300 |
| 5 | 2.5 | 300 |
| 12 | 1.5 | 400 |
| 12 | 2.5 | 620 |
| 25 | 0.75 | 500 |
| 25 | 1 | 550 |
| 32 | 1.5 | 950 |
| 42 | 1.5 | 1700 |
