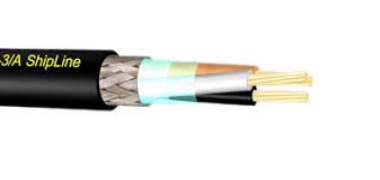

Voltage rating: 0,6/1 kV
Conductor: stranded annealed copper
Insulation: cross-linked polyethylene (XLPE)
Cores: cabled together, wrapped with polyester foil
Braiding: tinned copper wires
Outer sheath: halogen free flame retardant thermoplastic (LSOH)
Core colours:
1 core: black
2 cores: brown, blue
3 cores: brown, black, grey
4 cores: brown, black, grey, blue
5 cores: brown, black, grey, black, blue
Multi core: white, numbered
Standards/References:IEC 60092-353; IEC 60332-1; IEC 60332-3; IEC 61034; IEC 60754
Voltage rating: 250/250 V
Construction: stranded annealed copper
Insulation:cross-linked polyethylene (XLPE)
Cores: 2 cores twisted to form a pair, pairs cabled together, wrapped with polyester foil
Braiding: tinned copper wires
Outer sheath: halogen free flame retardant thermoplastic (LSOH)
Core colours:
Standard colours: white, numbered (pairnr. 1: core nr. 1 and 2,pair nr. 2: core nr. 3 and 4, etc.)
the cable with a single star quad has the core sequence 1 – 3 -2 – 4
Standards/References: IEC 60092-376; IEC 60332-1; IEC 60332-3; IEC 61034; IEC 60754
