Applications

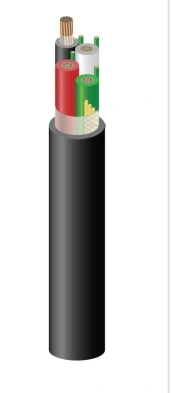

Type G is for use in heavy duty service as a power supply cable for mobile and portable mining equipment, loaders, conveyors, pumps, drills and cutters, and where flex life is required. Also suitable for continuous submersion in water – ideal for submersible pumps, marine application. Type G is for applications temperatures from -40°C to +90°C.
Conductor: Bare, soft drawn, annealed, flexible, rope-lay stranded copper per ASTM B3/B172
Separator Tape: Non-conducting tape applied between the conductor and insulation to facilitate stripping
Insulation: Ethylene Propylene Diene Monomer (EPDM). Color coded black, white, blue, red for sizes #4/0 and smaller and black, white, red, orange for sizes over 250 kcmil
Ground Conductors: Four insulated, bare, soft drawn, annealed, rope stranded, flexible lay copper per ASTM B3/B172
Fillers: Jute fillers applied as needed to round the cable core
Reinforcement Binder: Reinforcing binder with twine applied over the core
Jacket: Black, flame resistant, thermosetting Chlorinated Polyethylene (CPE)
| TYPE G – 2000 VOLT | ||||
| Conductor Size | No. of Conductors | Conductor Stranding | Ground Cond. Size | Nominal Net Weight |
| AWG/kcmil | AWG | lbs/kft | ||
| 8 | 4 | 133 | 4#12 | 679 |
| 6 | 4 | 133 | 4#12 | 890 |
| 4 | 4 | 259 | 4#10 | 1226 |
| 2 | 4 | 259 | 4#9 | 1782 |
| 1 | 4 | 259 | 4#8 | 2184 |
| 1/0 | 4 | 266 | 4#7 | 2611 |
| 2/0 | 4 | 342 | 4#6 | 3256 |
| 3/0 | 4 | 418 | 4#5 | 3778 |
| 4/0 | 4 | 532 | 4#2 | 5156 |
| 250 | 4 | 627 | 4#2 | 5844 |
| 350 | 4 | 888 | 4#1 | 7924 |
| 500 | 4 | 1221 | 4#1/0 | 10758 |
