Application
Type MC-HL cables with the impervious, continuous, corrugated aluminum sheath are recommended as an economical alternate to a wire in conduit system. They are authorized for use on services, feeders and branch circuits for power, lighting, control and signaling circuits in accordance with Article 330 and 725 of the NEC. Type MC-HL cables may be installed indoors or outdoors, in wet or dry locations, as open runs of cable secured to supports spaced not more than six feet apart, in cable tray, as aerial cable on a messenger, in any approved raceway, direct burial, or encased in concrete. Type MC-HL cables are also approved for Classes I, II, and III, Divisions 1 and 2 and Class I , Zones 1 and 2 hazardous locations – NEC Articles 501, 502, 503 and 505.

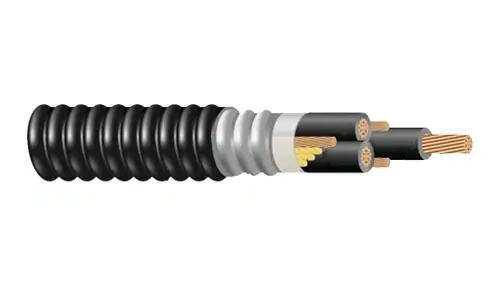

Aluminum Sheath 3/C VFD & 4/C Copper Conductors/90°C Wet or Dry Rating 600/1000V Marine Shipboard Cable, For Cable Tray Use – Sunlight Resistant – For Direct Burial
Conductor: Class B compressed stranded bare copper
Insulation: Cross Linked Polyethylene (XLPE) Type XHHW-2
Conductor Identification: Control Sizes, #9 AWG and smaller, color coded insulation. Power Sizes, #8 AWG and larger, black with printed words of number and color.
Grounding Conductor: Class B compressed stranded bare copper
Filler: Paper filler (cable size 8 & 6 uses Polypropylene filler)
Binder: Polypropylene tape
Armor: Continuous Corrugated Welded Armor
Overall Jacket: Polyvinyl Chloride (PVC) Jacket

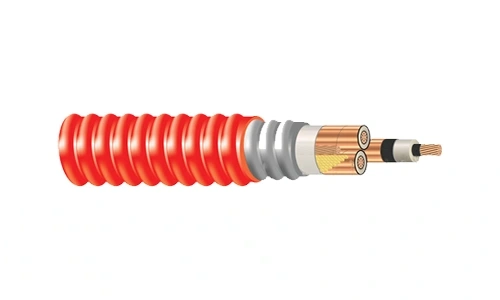

Aluminum Sheath 3 Copper Conductors, 220 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% Insulation Level
Conductor:Class B compressed stranded bare copper
Conductor Shield: Semi-conducting cross-linked copolymer
Insulation: 220 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% Insulation Level
Insulation Shield: Stripable semi-conducting cross-linked copolymer
Copper Tape Shield: Helically wrapped 5 mil copper tape with 25% overlap
Grounding Conductor: Class B compressed stranded bare copper ground per ASTM B3 and ASTM B8
Filler:Wax paper filler
Binder: Polypropylene tape
Armor: Continuous Corrugated Welded Aluminum Armor
Overall Jacket: Polyvinyl Chloride (PVC)
0.6/1KV Type MC-HL (XHHW-2) data sheet
| Gauge | Conductors | Ground No x AWG | Nominal OD over Armor | Nominal OD Overall | Material Weight (Lbs./M’) |
| 14 | 3 | 3 x 18 | 0.53 | 0.64 | 194 |
| 14 | 4 | 3 x 18 | 0.58 | 0.69 | 214 |
| 12 | 3 | 3 x 16 | 0.58 | 0.69 | 234 |
| 12 | 4 | 3 x 16 | 0.67 | 0.78 | 272 |
| 10 | 3 | 3 x 14 | 0.62 | 0.73 | 304 |
| 10 | 4 | 3 x 14 | 0.67 | 0.78 | 343 |
| 8 | 3 | 3 x 14 | 0.71 | 0.81 | 418 |
| 6 | 3 | 3 x 12 | 0.8 | 0.9 | 552 |
| 4 | 3 | 3 x 12 | 0.89 | 0.99 | 716 |
| 2 | 3 | 3 x 10 | 1.02 | 1.13 | 1051 |
| 1 | 3 | 3 x 10 | 1.15 | 1.26 | 1119 |
| 1/0 | 3 | 3 x 10 | 1.24 | 1.34 | 1631 |
| 2/0 | 3 | 3 x 10 | 1.34 | 1.44 | 1884 |
| 3/0 | 3 | 3 x 8 | 1.47 | 1.58 | 2332 |
| 4/0 | 3 | 3 x 8 | 1.6 | 1.73 | 2914 |
| 250 | 3 | 3 x 8 | 1.74 | 1.87 | 3262 |
| 350 | 3 | 3 x 7 | 1.96 | 2.09 | 4545 |
| 500 | 3 | 3 x 6 | 2.28 | 2.44 | 6232 |
| 750 | 3 | 3 x 5 | 2.75 | 2.92 | 9115 |
15KV Type MC-HL or MV-105 data sheet
| Conductor size (AWG or kcmil) | No. of Wires | Grounding Conductor(No. x AWG) | Overall Diameter Armor(inches) | Approx Net. Weight(lbs/1000ft) |
| 2 | 7 | 3x 10 | 2.22 | 2490 |
| 1/0 | 19 | 3x 8 | 2.42 | 3170 |
| 2/0 | 19 | 3x 8 | 2.52 | 3550 |
| 4/0 | 19 | 3×7 | 2.83 | 4630 |
| 250 | 37 | 3x 6 | 2.87 | 5160 |
| 350 | 37 | 3x 6 | 3.28 | 6630 |
| 500 | 37 | 3x 5 | 3.53 | 8420 |
