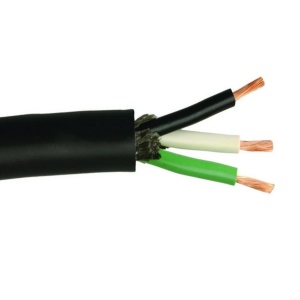

Construction: Extra flexible stranded copper conductors with separator and color coded insulation. Cabled with filler and separator.
Insulation:
1 Type SV — EPDM or PVC; 2 Type SVO — Color coded EPDM
Jacket:
1 Type SV — Rubber; 2 Type SVO — Neoprene
Application: used in portable tools, equipment, appliances, and motors.
Compliances: UL Listed / CSA Certified
Standard: UL 62
Rated temperature: 60℃
Conductors: Soft-annealed copper(7.1 and 7.2)
Core wire and jacket material: PVC(60℃ ,75℃ ,90℃ ,105℃ ).
The above cords can all be filled with yarn, paper and wrapped braids.
| Type | No of Cond. | Size AWG | Stranding | Insuliation Thick. | Jacket Thickness | O.D | Ampacity | Approx Woight | ||||
| inches | mm | inches | mm | inches | mm | Ibs/1000ft | KGs/KM | |||||
| SV | 2 | 18 | 41 | 0.016 | 0.4 | 0.03 | 0.762 | 0.245 | 6.223 | 10 | 39 | 58 |
| 3 | 18 | 41 | 0.016 | 0.4 | 0.03 | 0.762 | 0.245 | 6.477 | 10 | 46 | 68 | |
| SVO | 2 | 18 | 41 | 0.015 | 0.38 | 0.03 | 0.762 | 0.225 | 5.72 | 10 | 34 | 50 |
| 0 | 18 | 41 | 0.015 | 0.38 | 0.03 | 0.762 | 0.225 | 5.97 | 10 | 40 | 60 | |
| Type | Cores | Conductor | Insulation | Outer sheath | Approx. overall Dia | Max conductor resistance at 20 ℃ | ||
| AWM | No/Dia | Thickness | Thickness | Bare | Tinned | |||
| No | No | No/mm | mm | mm | mm | Ω/km | ||
| SVT SVTO SVTOO | 2 | 18 | 41/0.16 | 0.38 | 0.76 | 5.8 | 21.8 | 23.4 |
| 17 | 52/0.16 | 0.38 | 0.76 | 6 | 17.3 | 18.5 | ||
| 16 | 65/0.16 | 0.38 | 0.76 | 6.4 | 13.7 | 14.7 | ||
| 3 | 18 | 41/0.16 | 0.38 | 0.76 | 6.1 | 21.8 | 23.4 | |
| 17 | 52/0.16 | 0.76 | 0.76 | 6.4 | 17.3 | 18.5 | ||
| 16 | 65/0.16 | 0.76 | 0.76 | 6.8 | 13.7 | 14.7 | ||
