Applications of THOF Cable
Power cables used for navy ships, For use in Alternative Maritime Power, Ship to Shore power and Cold Ironing, For Other industrial applications.
Voltage Rating: 600 V or 2000 V
Conductor: 500 kcmil – flexible stranded tin coated copper to ASTM B33 for protection against corrosion. Class I rope-lay-stranded conductor with bunch-stranded members
Separator：A suitable polyester tape separator between the conductor and insulation
Insulation: A special EPDM rubber, halogen free, lead-free compound
Circuit identification: Color coding of power conductors : black , white , red

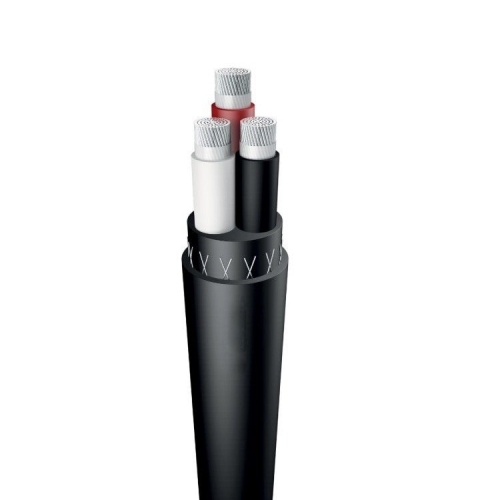

Core arrangement: Three power cores wrapped around rubber filler in the centre
Inner Jacket: Black integral filled heavy duty, chloroprene synthetic thermosetting compound
Reinforcement: Braid of polyamide threads between inner and outer sheath
Outer jacket: Black extra heavy duty , chloroprene synthetic thermosetting compound
| Power conductor size | Power Conductor Stranding | Nominal Insulation Thickness | Nominal Jacket Thickness (Inner and Outer) | Approx. Weight | Approx. O.D. | Conductor Resistance acc. to UL1581 | ||
| Kcmil | N x mm | Inches/mm | Inches/mm | lbs/1000 ft | kg/km | Inches | mm | Ohms/1000 Ft at 25°C |
| 500 | 1221×0.51 | 0.09/2.29 | 0.235/5.97 | 7282 | 10838 | 2.75 | 69.90 | 0.0238 |
