Applications:
1) CCTV Systems
2) Commercial Diving
3) Towed Systems
4) Data Transmission

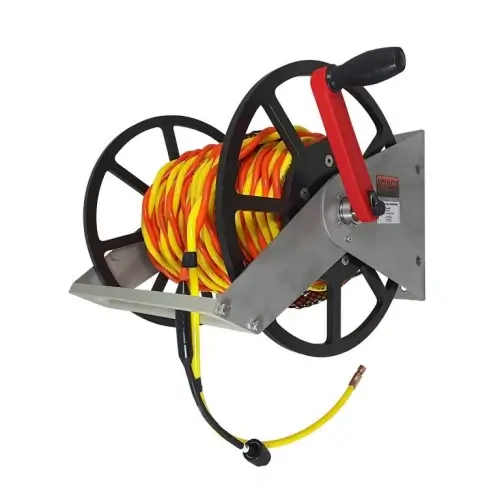

Umbilical reel for up to 250m of umbilical. This reel holds a umbilical for quick and easy deployment.
The reel is made from stainless steel and Acetal and has a removable crank handle. Inside the drum are a Slipring for a cable and a High pressure (300 bar) swivel for a airhose. The connections are on the side.
There are two variant available, one as wall mount and a standing variant. Both variants can be equipped with a second air swivel and a umbilical spooling guide.
1) The wall mount variant can be screwed to the wall.
2) The self-standing variant has lifting pad eyes and a forklift frame.

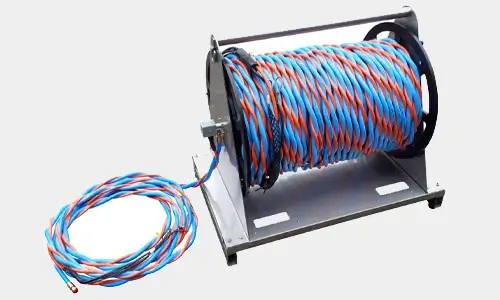

Self-standing variant

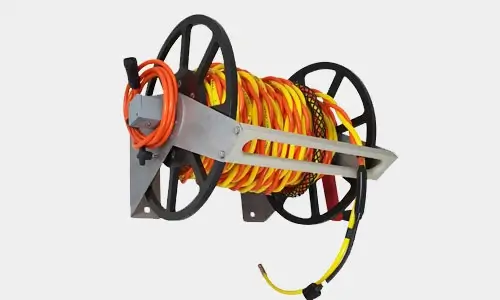

Wall Mount variant
Speciffcations
| Model | Wallmount | Standing |
| Description | Hand reel | Hand reel |
| Max Capacity (Ø32mm umbilical) | 250m | |
| Material | Acetal & Stainless steel | |
| Connector | UTS10 multipin standard or client specific | |
| Coupling | 1/4″ NPT or client specific | |
| Slip contacts | 12 contacts, gold-gold, 240 vac@2A per contact | |
| Air Swivel | 300 bar High pressure | |
| Dim. (mm) | 600x420x470 (60m) | 1054x895x700 (100m) |
| Weight | 16 kg (empty) | 20 kg (empty) |
| Brake | Screw brake to hold drum in position | |
| Optional | 24 slip contact, second air swivel | |
