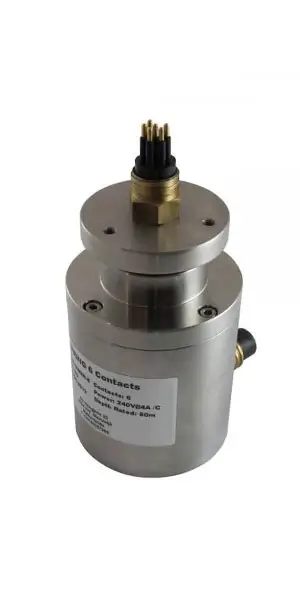

Underwater Slip Ring Contact that uses brushes on stationary contacts to transfer electrical connections. The slip ring is consists of a stator and a rotor.
There are two different configurations available; up to 12 connections or up to 21 connections.
Applications:
1) ROV’s
2) Rotating Installations
General
Working Depth: 80m
Material: S/S 316
Contacts: 0-12 or 13-21
Max Speed: 300 Rpm
Lifetime: 100 Million revolutions
Electrical
Rating voltage: 240VAC
Rating current: 2A/ring, 5A, 10A by parallel
Insulation resistance: 1000MΩ@500VDC
dielectric strength: 600VDC@50Hz
Electrical noise: 10mΩ@6VDC,50m
Contact material: Gold-Gold
Lead wire: 12 color AWG#28 Teflon wire
Connectors
Rotor: MCBHxM (Depends on number of contacts)
Stator: MCBHxM (Depends on number of contacts)
Size :
Width: Ø 75 mm
Height: 100/125 mm
Weight: 2,5 kg (in air), 2,2 kg (in water)
