Description
VFD cable organizes and protects variable frequency drive input and motor power wiring, and is designed to reduce VFD-related interference (EMI) on nearby equipment. These shielded multi-conductor cables have a black thermoplastic elastomer (TPE) outer jacket, and are available with 4 conductors in up to 2 AWG wire size. A variety of constructions and voltages are available including 600V, 2KV, 2KV armored & sheathed, and 8KV and 15KV medium voltage armored & sheathed. Grounding systems are offered in full conductor size, 3 symmetrical bare, and 3 symmetrical insulated. Shielding options include copper tape shield, tinned copper braid + poly aluminum tape, and tinned copper armor + aluminum poly tape. Whether onshore or offshore, in a refinery or on a platform, HWC has the right VFD power cable for your application.

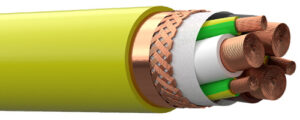

0.6/1kv EMC VFD Cable
- Voltage: 0.6/1kV
- Type: Flat or Round
- Conductor: Flexible tinned copper
- Insulation: EPR (90°C)
- Insulation Shielding: Tinned copper and color-coded nylon braid
- Ground Check Conductor: Flexible tinned copper with yellow XLPE insulation
- Ground Wires: Flexible tinned copper
- Jacket: CPE or TPU
- Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

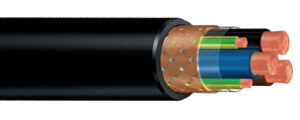

3+3Core EMC Type P Marine VFD Cable
- Core: 3 Core
- Conductor: Flexible tinned copper
- Insulation: EPR (90°C)
- Insulation Shielding: Tinned copper and color coded nylon braid
- Ground Conductor: Flexible tinned copper located in the center of the cable
- Control Ground Conductor: Tinned Copper Conductor/EPR Insulation
- Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)

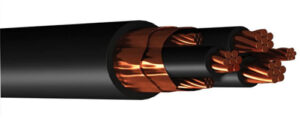

0.6/1KV 3+3 Core XLPO VFD Power Cable
- Voltage: 0.6/1kV
- Core: 3 Core
- Conductor: Flexible tinned copper
- Insulation: EPR (90°C)
- Insulation Shielding: Tinned copper and color coded nylon braid
- Ground Wires: Flexible tinned copper
- Control Check Conductor: Tinned copper with yellow insulation located in the central of the cable
- Separator Tape: Non-conducting
- Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)

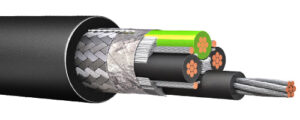

0.6/1kV Foil&Braid Shielded VFD Cable
- Voltage: 600/1000V Type TC-ER, 90°C
- Core: 3+3 Core
- Conductor: Flexible tinned copper
- Insulation: XLPO/XLPE
- Insulation Shielding: Braid/Foil Shield with Full Size Drain Wire
- Ground Conductor: One full-size tinned copper conductor with green/yellow polyvinyl chloride (PVC) insulation
- Jacket: PVC
- Color code: Black with number surface printed in contrasting ink
0.6/1kV Copper Tape Shielded VFD Cable
- Voltage: 600/1000V Type TC-ER, 90°C
- Core: 3+3 Core
- Conductor: Flexible tinned copper
- Insulation: XLPO
- Insulation Shielding: Copper Tape Shielded
- Ground Conductor: Three symmetrically placed flexible stranded tinned copper conductors in direct contact with the shield
- Jacket: PVC
- Color code: 262MCM and larger: black and numbered
- 4/0AWG and smaller: red, white, black

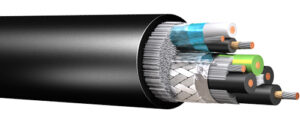

0.6/1kV Foil & Braid w/ Signal Pair
- Voltage: 600/1000V Type TC-ER, -40C°C to 90C°
- Core: Signal Pair
- Conductor: Tinned Copper Conductors + Signal Pair
- Insulation: XLPE
- Insulation Shielding: Overall +85% TC Braid Shield
- Ground Conductor: Full-sized Insulated Grounds
- Jacket: PVC
- Color code: Black with number surface printed in contrasting ink
