Flexible rubber cable for VFD and FC

Application

The cables are suitable for fixed installation and flexible operation as motor power supply cables for Variable Frequency Drives and Frequency Converter controlled drives in the mining industry, on construction sites and similar applications, with heavy mechanical stresses. For laying on material handling equipment (even with continuous movement such as in cable booms or as connection between upper and lower car). Can be used permanently in waste water up to 40°C at a depth of max. 500m. Whether onshore or offshore, in a refinery or on a platform, Huadong Cable Group has the right VFD power cable for your application.

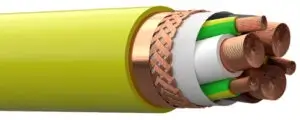

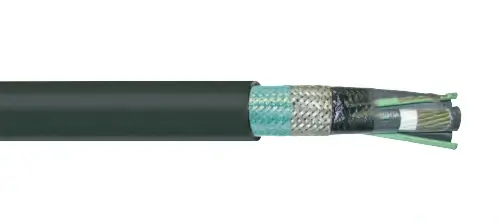

0.6/1kv EMC VFD Cable

Voltage: 0.6/1kV
Type: Flat or Round
Conductor: Flexible tinned copper
Insulation: EPR (90°C)
Insulation Shielding: Tinned copper and color-coded nylon braid
Ground Check Conductor: Flexible tinned copper with yellow XLPE insulation
Ground Wires: Flexible tinned copper
Jacket: CPE or TPU
Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

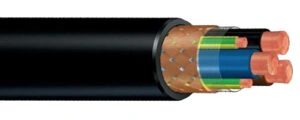

3+3Core EMC Type P Marine VFD Cable

Core: 3 Core
Conductor: Flexible tinned copper
Insulation: EPR (90°C)
Insulation Shielding: Tinned copper and color coded nylon braid
Ground Conductor: Flexible tinned copper located in the center of the cable
Control Ground Conductor: Tinned Copper Conductor/EPR Insulation
Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)

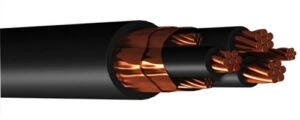

0.6/1KV 3+3 Core XLPO VFD Power Cable

Voltage: 0.6/1kV
Core: 3 Core
Conductor: Flexible tinned copper
Insulation: EPR (90°C)
Insulation Shielding: Tinned copper and color coded nylon braid
Ground Wires: Flexible tinned copper
Control Check Conductor: Tinned copper with yellow insulation located in the central of the cable
Separator Tape: Non-conducting
Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)

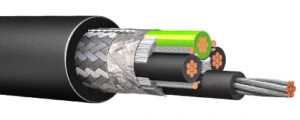

0.6/1kV Foil&Braid Shielded VFD Cable

Voltage: 600/1000V Type TC-ER, 90°C
Core: 3+3 Core
Conductor: Flexible tinned copper
Insulation: XLPO/XLPE
Insulation Shielding: Braid/Foil Shield with Full Size Drain Wire
Ground Conductor: One full-size tinned copper conductor with green/yellow polyvinyl chloride (PVC) insulation
Jacket: PVC
Color code: Black with number surface printed in contrasting ink

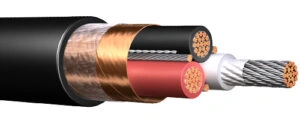

0.6/1kV Copper Tape Shielded VFD Cable

Voltage: 600/1000V Type TC-ER, 90°C
Core: 3+3 Core
Conductor: Flexible tinned copper
Insulation: XLPO
Insulation Shielding: Copper Tape Shielded
Ground Conductor: Three symmetrically placed flexible stranded tinned copper conductors in direct contact with the shield
Jacket: PVC
Color code: 262MCM and larger: black and numbered
4/0AWG and smaller: red, white, black

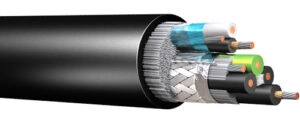

0.6/1kV Foil & Braid w/ Signal Pair VFD Cable

Voltage: 600/1000V Type TC-ER, -40C°C to 90C°
Core: Signal Pair
Conductor: Tinned Copper Conductors + Signal Pair
Insulation: XLPE
Insulation Shielding: Overall +85% TC Braid Shield
Ground Conductor: Full-sized Insulated Grounds
Jacket: PVC
Color code: Black with number surface printed in contrasting ink

3+3 Core XLPE VDF Cable Parameter

n˚ x Section (mm2)	Diameter under the braid (mm)	Overall Diameter (mm)	Weight (kg/km)
4 G 1,5	7,0	10,4	155
4 G 2,5	7,9	11,3	195
4 G 4	9,2	12,4	260
4 G 6	10,6	14,0	345
4 G 10	12,9	17,2	595
3 x 16 + 3 G 2,5	13,5	17,2	670
3 x 25 + 3 G 4	16,8	21,4	1085
3 x 35 + 3 G 6	19,4	24,1	1455
3 x 50 + 3 G 10	22,8	28,0	2025
3 x 70 + 3 G 10	27,1	32,5	2650
3 x 95 + 3 G 16	30,5	36,1	3455
3 x 120 + 3 G 16	34,6	41,0	4345
3 x 150 + 3 G 25	38,9	45,5	5450
3 x 185 + 3 G 35	43,4	50,4	6755
3 x 240 + 3 G 50	49,2	56,6	8680
3 x 300 + 3 G 50	55,3	63,0	10695

Get a free quote by e-mail: sales@huadongcablegroup.com

3+3 Core XLPE VDF Cable Parameter

Size (AWG/kcmil)	Number of Conductor	Conductor Stranding	Insulation Thickness (inches)	Ground Wire Size (AWG)	Ground Wire Stranding	Jacket Thickness (inches)	Overall Dia. (inches)	Weight (lbs/Mft.)
14	3	19	0.030	18 x 3	19	0.06	0.466	158
12	3	19	0.030	16 x 3	19	0.06	0.509	199
10	3	37	0.030	14 x 3	19	0.06	0.552	258
8	3	37	0.045	14 x 3	19	0.06	0.653	368
6	3	61	0.045	12 x 3	19	0.06	0.737	517
4	3	133	0.045	12 x 3	19	0.08	0.956	814
2	3	133	0.045	10 x 3	37	0.08	1.103	1,178
1	3	209	0.055	10 x 3	37	0.08	1.221	1,462
1/0	3	266	0.080	10 x 3	37	0.08	1.447	1,886
2/0	3	323	0.080	10 x 3	37	0.08	1.538	1,951
4/0	3	532	0.080	8 x 3	37	0.11	1.883	3,102
262	3	646	0.065	6 x 3	61	0.11	1.981	3,642
313	3	777	0.065	6 x 3	61	0.11	2.08	4,658
373	3	925	0.065	6 x 3	61	0.11	2.215	5,318
444	3	1110	0.065	6 x 3	61	0.11	2.367	6,177
535	3	1332	0.080	6 x 3	61	0.11	2.676	7,787
646	3	1591	0.080	4 x 3	133	0.14	2.893	9,155
777	3	1924	0.080	4 x 3	133	0.14	3.164	10,914

Get a free quote by e-mail: sales@huadongcablegroup.com

3+3 Core XLPE VDF Cable Parameter

n˚ x Section (mm2)	Diameter under the braid (mm)	Overall Diameter (mm)	Weight (kg/km)
4 G 1,5	7,0	10,4	155
4 G 2,5	7,9	11,3	195
4 G 4	9,2	12,4	260
4 G 6	10,6	14,0	345
4 G 10	12,9	17,2	595
3 x 16 + 3 G 2,5	13,5	17,2	670
3 x 25 + 3 G 4	16,8	21,4	1085
3 x 35 + 3 G 6	19,4	24,1	1455
3 x 50 + 3 G 10	22,8	28,0	2025
3 x 70 + 3 G 10	27,1	32,5	2650
3 x 95 + 3 G 16	30,5	36,1	3455
3 x 120 + 3 G 16	34,6	41,0	4345
3 x 150 + 3 G 25	38,9	45,5	5450
3 x 185 + 3 G 35	43,4	50,4	6755
3 x 240 + 3 G 50	49,2	56,6	8680
3 x 300 + 3 G 50	55,3	63,0	10695

Get a free quote by e-mail: sales@huadongcablegroup.com
