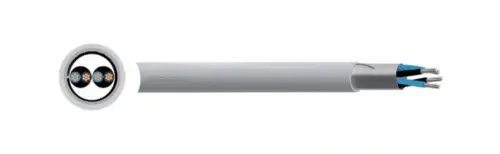

XI(c) collectively screened Instrumentation Cable IEC 60092-376
Voltage Rating Uo/U: 150/250V
Conductor: Flexible copper conductor
Insulation: XLPE
Collectively Screened: Al/PE tape
Drain Wire: Tinned copper drain wire
Sheath: SHF1 compound
Core Identification:
Pair: Black Light Blue
Triple: Black Light Blue Brown
Multi pairs/triples: Progressively numbered
Sheath Colour: Grey
APPLICATION: A flexible, flame-retardant and halogen-free, collectively screened, instrumentation cable designed for fixed installation, suitable for conditions on vessels of any size. For
use in a wide range of temperatures, saline atmospheres and where UV radiation is present, according to the IEC60092 series.

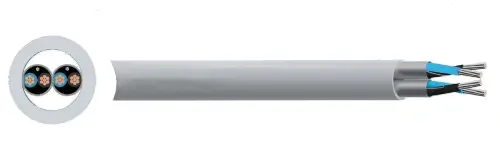

XI(i) individually screened Instrumentation Cable IEC 60092-376
Voltage Rating Uo/U: 150/250V
Conductor: Flexible copper conductor
Insulation: XLPE
Individual Screen: Al/PE tape
Drain Wire: Tinned copper drain wire
Sheath: SHF1 compound
Core Identification:
Pair: Black Light Blue
Triple: Black Light Blue Brown
Multi pairs/triples: Progressively numbered
Sheath Colour: Grey
APPLICATION: A flexible, flame-retardant and halogen-free, individually screened, instrumentation cable designed for fixed installation, suitable for conditions on vessels of any size. For
use in a wide range of temperatures, saline atmospheres and where UV radiation is present, according to the IEC60092 series.
| XI(c) 150/250V Instrumentation Cable IEC 60092-376 | ||
| NO. OF PAIRS/TRIPLES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL WEIGHT kg/km |
| 1P | 0.75 | 70 |
| 1P | 1.5 | 90 |
| 1T | 0.75 | 80 |
| 1T | 1.5 | 120 |
| 2P | 0.75 | 90 |
| 2P | 1.5 | 140 |
| 2T | 0.75 | 150 |
| 2T | 1.5 | 210 |
| 4P | 0.75 | 170 |
| 4P | 1.5 | 260 |
| 4T | 0.75 | 220 |
| 4T | 1.5 | 340 |
| 7P | 0.75 | 260 |
| 7P | 1.5 | 400 |
| 7T | 0.75 | 360 |
| 7T | 1.5 | 560 |
| 10P | 0.75 | 360 |
| 10P | 1.5 | 560 |
| 1OT | 0.75 | 500 |
| 10T | 1.5 | 800 |
| 14P | 0.75 | 470 |
| 14P | 1.5 | 740 |
| 14T | 0.75 | 650 |
| 14T | 1.5 | 1060 |
| 19P | 0.75 | 610 |
| 19P | 1.5 | 990 |
| 19T | 0.75 | 860 |
| 19T | 1.5 | 1400 |
| 24P | 0.75 | 760 |
| 24P | 1.5 | 1230 |
| 30P | 0.75 | 930 |
| 30P | 1.5 | 1510 |
| XI(i) 150/250V Instrumentation Cable IEC 60092-376 | ||
| NO. OF PAIRS/TRIPLES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL WEIGHT kg/km |
| 2P | 0.75 | 120 |
| 2P | 1.5 | 180 |
| 2T | 0.75 | 160 |
| 2T | 1.5 | 230 |
| 4P | 0.75 | 200 |
| 4P | 1.5 | 290 |
| 4T | 0.75 | 250 |
| 4T | 1.5 | 380 |
| 7P | 0.75 | 310 |
| 7P | 1.5 | 470 |
| 7T | 0.75 | 410 |
| 7T | 1.5 | 630 |
| 10P | 0.75 | 430 |
| 10P | 1.5 | 660 |
| 1OT | 0.75 | 560 |
| 1OT | 1.5 | 890 |
| 14P | 0.75 | 570 |
| 14P | 1.5 | 890 |
| 14T | 0.75 | 750 |
| 14T | 1.5 | 1190 |
| 19P | 0.75 | 750 |
| 19P | 1.5 | 1170 |
| 19T | 0.75 | 1010 |
| 19T | 1.5 | 1580 |
| 24P | 0.75 | 930 |
| 24P | 1.5 | 1460 |
| 30P | 0.75 | 1140 |
| 30P | 1.5 | 1820 |
