Applications

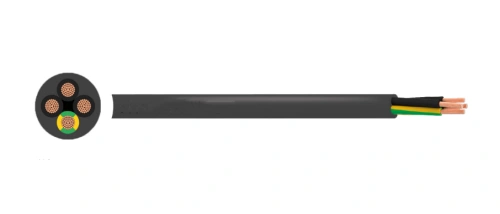

Flexible power, process control and instrumentation cable for industry, machinery and outdoor environment. The YSLY cable is resistant against most usual chemicals, oil and grease.
Rated Voltage Uo/U: 0.6/1kV
Conductor: Class 5 flexible stranded bare copper
Protective Conductor
Insulation: PVC (Polyvinyl Chloride)
Outer Sheath: Special PVC-Compound (Polyvinyl Chloride)
Core Identification: Black numebered + Green/Yellow
Sheath Colour: Black
| YSLY 0.6/1kV Cable | |||||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | mm2 | kg/km | ||
| 3 | 0.75 | 91 | 7 | 0.75 | 177 |
| 3 | 1 | 98 | 7 | 1 | 179 |
| 3 | 1.5 | 122 | 7 | 1.5 | 192 |
| 3 | 2.5 | 176 | 7 | 2.5 | 335 |
| 3 | 4 | 225 | 7 | 4 | 524 |
| 4 | 0.75 | 120 | 7 | 6 | 802 |
| 4 | 1 | 110 | 12 | 0.75 | 248 |
| 4 | 1.5 | 150 | 12 | 1 | 287 |
| 4 | 2.5 | 209 | 12 | 1.5 | 363 |
| 4 | 4 | 311 | 12 | 2.5 | 544 |
| 4 | 6 | 429 | 18 | 0.75 | 350 |
| 4 | 10 | 759 | 18 | 1 | 408 |
| 4 | 16 | 1093 | 18 | 1.5 | 520 |
| 4 | 25 | 1593 | 18 | 2.5 | 788 |
| 4 | 35 | 2390 | 25 | 0.75 | 478 |
| 4 | 50 | 3400 | 25 | 1 | 567 |
| 4 | 70 | 4750 | 25 | 1.5 | 740 |
| 5 | 0.75 | 134 | 34 | 0.75 | 626 |
| 5 | 1 | 136 | 34 | 1 | 751 |
| 5 | 1.5 | 176 | 34 | 1.5 | 959 |
| 5 | 2.5 | 252 | 42 | 0.75 | 760 |
| 5 | 4 | 398 | 42 | 1 | 890 |
| 5 | cO | 602 | 42 | 1.5 | 1110 |
| 5 | 10 | 927 | 50 | 0.75 | 871 |
| 5 | 16 | 1583 | 50 | 1 | 1076 |
| 5 | 25 | 2040 | 50 | 1.5 | 1399 |
| 5 | 35 | 2887 | 61 | 0.75 | 1060 |
| 5 | 35 | 2887 | 61 | 1.5 | 1680 |
