Applications

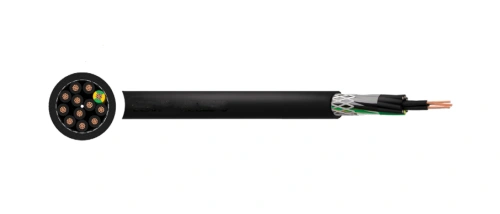

Flexible power, process control and instrumentation cable for industry, machinery and outdoor environment with increased requirements to electromagnetic compatibility. The YSLYCY cable is resistant against most usual chemicals, oil and grease. This cable is suitable for indoor and outdoor application.
Rated Voltage Uo/U: 0.6/1kV
Conductor: Class 5 flexible stranded bare copper
Insulation: PVC (Polyvinyl Chloride)
Bedding: PVC (Polyvinyl Chloride)
Screen: Copper Braided 70% Coverage
Outer Sheath: Special PVC Compound (Polyvinyl Chloride)
Core Identification: Black with numbers + Green/Yellow
Outer Sheath Colour: Black
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 3 | 0.75 | 155 |
| 3 | 1 | 196 |
| 3 | 1.5 | 187 |
| 3 | 2.5 | 326 |
| 3 | 4 | 391 |
| 4 | 0.75 | 214 |
| 4 | 1 | 231 |
| 4 | 1.5 | 265 |
| 4 | 2.5 | 379 |
| 4 | 4 | 557 |
| 4 | 6 | 723 |
| 4 | 10 | 1267 |
| 4 | 16 | 1763 |
| 4 | 25 | 2750 |
| 4 | 35 | 3497 |
| 4 | 50 | 4937 |
| 4 | 70 | 7480 |
| 4 | 95 | 10220 |
| 5 | 0.75 | 250 |
| 5 | 1 | 270 |
| 5 | 1,5 | 289 |
| 5 | 2.5 | 471 |
| 5 | 4 | 695 |
| 5 | 6 | 984 |
| 5 | 10 | 1635 |
| 5 | 16 | 2720 |
| 5 | 25 | 3490 |
| 7 | 0.75 | 319 |
| 7 | 1 | 289 |
| 7 | 1.5 | 416 |
| 7 | 2.5 | 590 |
| 12 | 0.75 | 437 |
| 12 | 1 | 493 |
| 12 | 1.5 | 641 |
| 12 | 2.5 | 897 |
| 18 | 0.75 | 588 |
| 18 | 1 | 658 |
| 18 | 1.5 | 872 |
| 18 | 2.5 | 1355 |
| 25 | 0.75 | 746 |
| 25 | 1 | 870 |
| 25 | 1.5 | 1211 |
| 25 | 2.5 | 1995 |
