Application
2YSLCY-J and 2YSLCYK-J shielded cables are intended for connecting converters or inverters with motors in industrial installations, production plants, air-conditioners and other equipment operating in dry and wet locations. Cables are protected by a specially designed and highly effective collective shield against emission of electromagnetic interferences to environment and against influence of external interferences.
2YSLCY-J cables are suitable for indoor and 2YSLCYK-J cables for outdoor fixed and movable installations. Cable outer sheath is oil-resistant.

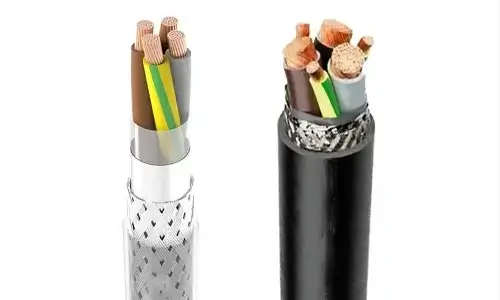

CONSTRUCTION:
– flexible, multiwire conductors, stranded of bare annealed copper wires (tin-plated on request), meeting requirements of class 5 per PN-EN 60228,
– polyethylene (PE) insulation – black, blue, brown and green-yellow,
– insulated conductors laid-up in a cable core,
– double screen of aluminium laminated tape and braid of tinned copper wire, braid shield of coverage bigger than 80%,
– PVC cable sheath of TECHNOFLEX 2YSLCY-J cable, transparent or grey RAL 7001, other colours also available,
– PVC cable sheath of TECHNOFLEX 2YSLCYK-J cable, black RAL 9005, other colours also available.
| Number x cross section | outer diameter (appr.) | Cable weight (appr.) |
| mm2 | mm | kg/km |
| 2YSLCY-J | ||
| 4×1,5 | 9.9 | 141 |
| 4×2,5 | 11.4 | 195 |
| 4×4 | 13.3 | 277 |
| 4×6 | 15.3 | 379 |
| 4×10 | 18.4 | 595 |
| 4×16 | 22.1 | 914 |
| 4×25 | 25.3 | 1294 |
| 4×35 | 28.3 | 1685 |
| 4×50 | 36.3 | 2496 |
| 4×70 | 43.7 | 3625 |
| 4×95 | 48 | 4622 |
| 4×120 | 53.4 | 5923 |
| 4×150 | 57.9 | 7019 |
| 4×185 | 63.9 | 8649 |
| 4×240 | 73.1 | 11232 |
| 2YSLCYK-J | ||
| 4×1,5 | 9.9 | 145 |
| 4×2,5 | 11.4 | 199 |
| 4×4 | 13.3 | 283 |
| 4×6 | 15.3 | 386 |
| 4×10 | 18.4 | 605 |
| 4×16 | 22.1 | 926 |
| 4×25 | 25.3 | 1309 |
| 4×35 | 28.3 | 1703 |
| 4×50 | 36.3 | 2522 |
| 4×70 | 43.7 | 3660 |
| 4×95 | 48 | 4662 |
| 4×120 | 53.4 | 5972 |
| 4×150 | 57.9 | 7074 |
| 4×185 | 63.9 | 8714 |
| 4×240 | 73.1 | 11314 |
