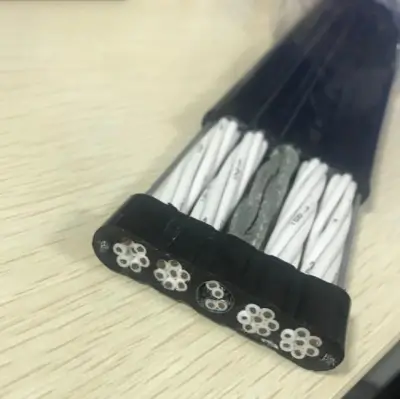

Application: The EVVF series travelling cable contains copper Wires,twisted-pair cable, optical fiber,and two same ax cables. If a special cable is required for a CCTV camera,Customized is available.
Nominal voltage: 300/500V
Conductor: Class 5 flexible copper conductor
Insulation: PVC
Sheath: PVC
Cores: 6, 12, 18, 20, 24 Cores or Others
| 300V EVVF-L | ||||
| No. of Cores | Conductor | Approx. Weight kg/km | ||
| Nominal Sectional Area mm2 | Composition No./mm | Outer Diameter mm | ||
| 30(5 x 6) | 0.75 | 30/0.18 | 1.1 | 610 |
| 40(5 x 8) | 0.75 | 30/0.18 | 1.1 | 840 |
| 60(6 x 10) | 0.75 | 30/0.18 | 1.1 | 1,145 |
| 300V EVVF-H | ||||
| No. of Cores | Conductor | Approx. Weight kg/km | ||
| Nominal Sectional Area mm2 | Composition No./mm | Outer Diameter mm | ||
| 30(5 x 6) | 0.75 | 30/0.18 | 1.1 | 660 |
| 40(5 x 8) | 0.75 | 30/0.18 | 1.1 | 940 |
| 60(6 x 10) | 0.75 | 30/0.18 | 1.1 | 1,294 |
