Application
Applied as a traveling suspension cable inside elevators, suitable for high lift elevators. Use shielded cable with special anti-electromagnetic interference performance. High-strength aviation galvanized steel wire is used for load bearing, which extends the service life.
Features: Highly flexible; wear-resistant and durable; high-strength tensile properties; weather-resistant; flame retardant.
Application standards: GB 5023.6, IEC 60227-6, En 50214

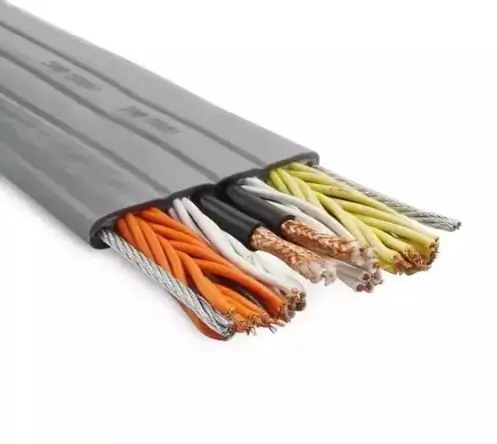

Flat elevator cable TVVB, TVVBG with steel wire structure:
Conductor: Multi-strand ultra-fine finely stranded oxygen-free copper wire, in line with VDE0295 CLASS 5 standard
Insulation: special mixed PVC insulation
Color: color representation, in line with GB5023.6 (yellow, white, orange, light green, pink) digital number (no yellow and green grounding wire)
| TVVBG | |
| Number of cores and nominal section (n × mm2) | external diameter (mm) |
| 3×2.5 | 7.0×21.6 |
| 6×0.75 | 5.1×23.1 |
| 12×0.75 | 5.1×44.2 |
| 18×0.75 | 5.1×54 |
| 24×0.75 | 5.1×68 |
| 12×10 | 5.4×45.6 |
| 18×1.0 | 5.4×55 |
| The cores of the above products are placed in parallel | |
| 18×0.75 | 9.0×36.7 |
| 24×0.75 | 9.0×43 |
| 30×0.75 | 9.0×47.7 |
| 36×0.75 | 9.0×53.6 |
| 40×0.75 | 9.0×60 |
| 42×0.75 | 9.0×60 |
| 48×0.75 | 9.0×66.3 |
| 60×0.75 | 9.0×80.4 |
| 16×1.0 | 8.6×40 |
| 18×1.0 | 10.5×38.5 |
| 24×1.0 | 10.5×46 |
| The core wires of the above products are laid in groups | |
