Application

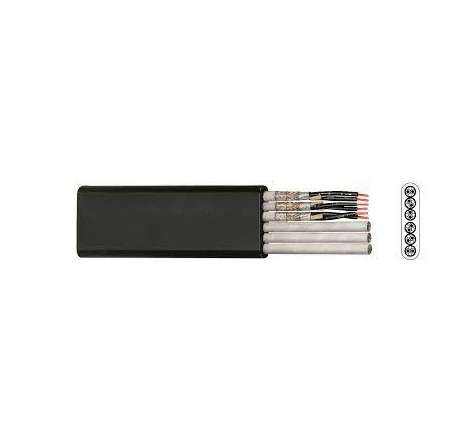

Flexible low voltage power and control cable, for use on festoon systems and for connecting moveable parts of machine tools, material handling equipment, etc., associated with high mechanical stresses and frequent bending during operation and for bending in one plane only.
Type designation: NGFLGOEU-J/-O
Rated voltage: 300/500V (600V)
Conductor: Eletrolytic copper, not tinned:
– up to 25 mm²: extremely finely stranded, class 6
– above 35 mm²: finely stranded, class 5
Insulation: EPR
Individual screen: Braid screen made of tinned copper wires
Outer sheath: Basic material CR, Rubber compound 5GM3
Colour: black
| Number of cores x cross section | Weight(ca.)kg/km |
| NGFLGOEU-J control cables | |
| 3×1,5 | 130 |
| 4×1,5 | 170 |
| 5×1,5 | 210 |
| 7×1,5 | 280 |
| 8×1,5 | 310 |
| 10×1,5 | 440 |
| 12×1,5 | 530 |
| 24×1,5 | 1040 |
| 42×1,5 | 1920 |
| 4×2,5 | 260 |
| 5×2,5 | 320 |
| 7×2,5 | 440 |
| 8×2,5 | 490 |
| 10×2,5 | 660 |
| 12×2,5 | 1780 |
| 24×2,5 | 1690 |
| 7x(3×1) | 770 |
| NGFLGOEU-J power cables | |
| 4×4 | 390 |
| 4×6 | 500 |
| 4×10 | 750 |
| 4×16 | 1060 |
| 4×25 | 1500 |
| 4×35 | 2040 |
| 4×50 | 2830 |
| 4×70 | 3820 |
| 4×95 | 4930 |
| 4×120 | 6220 |
| 5×4 | 510 |
| 5×6 | 640 |
| 5×10 | 960 |
| 5×16 | 1360 |
| 7×4 | 690 |
| 7×6 | 870 |
| 7×10 | 1320 |
| 7×16 | 1990 |
| 7×25 | 2820 |
| 7×35 | 3820 |
| (N)GFLGOEU-O control cables with individually screened cores | |
| 12×1(C) | 660 |
| 4×1,5(C) | 250 |
| 8×1,5(C) | 510 |
| 12×1,5(C) | 780 |
| (N)GFLGOEU-O bus cables | |
| 4x(2×1)C | 630 |
| 6x(2×2,5)C | 1680 |
| 7x(2×1)C | 1090 |
| (N)GFLGOEU-J power cables with individual screen | |
| 4×4(C) | 550 |
| 4×6(C) | 665 |
| 4×10(C) | 1060 |
| 4×16(C) | 1360 |
| 4×25(C) | 1980 |
| 4×35(C) | 2590 |
| 4×50(C) | 3590 |
| 4×70(C) | 4630 |
| 4×95(C) | 15950 |
