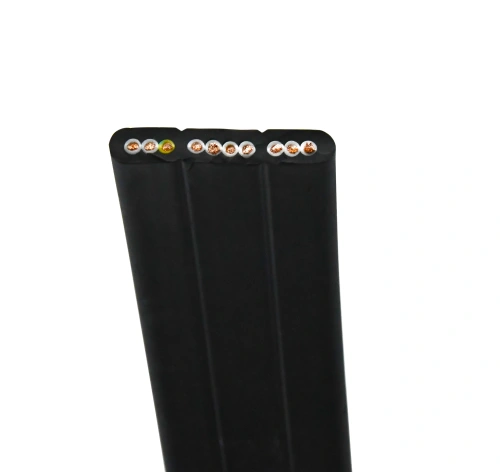

H05VVH6-F & H07VVH6-F Flat Elevator cables for Lifts, Cranes, Hoists and Conveyor Systems.

sales@huadongcablegroup.com

Application: H05VVH6-F & H07VVH6-F is a flat cable specially designed for cranes, lifts, hoists, drum reeling and conveyor systems.
The hanging length of the cable can reach up to 35 m and its pull out speed can reach up to 1,6 m/s (overlaying cables is not recommended when installing).
• Industrial use.
• Mobile services.
• Bridge cranes.
• Lifts, elevators.
• Conveyors.
Nominal voltage: Low voltage: 300/500 V – 450/750 V
Conductor: Electrolytic annealed copper, class 5 (flexible)
Insulation: Flexible PVC, type TI2
Outer sheath: Flexible PVC, type TM2. Black colour.

H05VVH6-F
Cross-section (mm2)	Diameter(mm)	Weight(kg/km)
6G0,75	17 x 3,9	115
8 G 0,75	22 x 3,9	175
10 G 0,75	26 x 3,9	195
12 G 0,75	31×3,9	230
16 G 0,75	40 x 3,9	305
18 G 0,75	45×3,9	345
20 G 0,75	50 x 3,9	380
24 G 0,75	60 x 3,9	450
6G0,75	17 x3,9	115
8G0,75	22 x 3,9	175
10 G 0,75	26 x 3,9	195
12 G 0,75	31 x 3,9	230
16 G 0,75	40×3,9	305
18 G 0,75	45 x 3,9	345
20 G 0,75	50 x 3,9	380
24 G 0,75	60 x 3,9	450
4G1	12×4,1	100
6G1	18×4,1	140
8G1	23×4,1	185
12G1	33 x4,1	270
16G1	44 x4,1	355
20 G 1	55 x4,1	440
24G1	65 x4,1	525

sales@huadongcablegroup.com

H07VVH6-F
Cross-section (mm2)	Diameter(mm)	Weight(kg/km)
4G1,5	17×4,9	150
6G1,5	22 x 4,9	215
8G1,5	27 x4,9	270
10 G 1,5	34 x4,9	335
12G 1,5	39 x 4,9	395
14 G 1,5	47 x 5,2	475
*16G 1,5	53 x 5,2	530
4G2,5	21 x 5,9	220
6G2,5	27 x 5,9	310
8G2,5	34 x 5,9	395
12 G2,5	50 x 5,9	590
4G4	23 x 7,0	305
12G4	56 x 7,0	830
4G6	25 x 7,2	390
8 G 6	43×7,2	735
4G10	30 x9,3	640
4G 16	35 x 10,5	930
4G25	44 x 13,1	1.435
4 G 35	48×14,4	1.88
4G 50	57 x 16,2	2.58
4 G 70	61 x17,5	3.375
4 G 95	69 x 19,5	4.375
