H1Z2Z2-K 1.5kV DC PV Cable, rubber insulated
Voltage Rating Uo/U: AC: 1000/1000V; DC: 1500/1500V
Maximum Voltage (Umax): 1800V
Conductor: Class 5 flexible tinned copper conductor
Insulation: Halogen-free cross-linked compound
Sheath: Halogen-free cross-linked, flame retardant compound
Sheath Colour: Black; Other colours available on request
Application: Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems. Impact tested – Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. Water resistant to AD8.
H1Z2Z2-K NTS Stainless Steel Shield Braid Anti Mouse Ant Solar PV Cable
Voltage: AC:1000/1000 V; DC: 1500/1500 V
Conductor: Copper wire tinned
Core insulation: cross-linked compound
Outer sheath: cross-linked compound
Stainless steel braiding (V2A)
Application: H1Z2Z2-K NTS is used for wiring solar modules. The maximum permissible DC voltage of the system in which the cable is installed must not exceed 1.8 kV. The cable is suitable for use in and on devices and systems with protective insulation (protection class II). Basic version H1Z2Z2-K according to DIN EN 50618 / TÜV
H1Z2Z2-K 1.5kV DC PV Cable Data Sheet
| NO.OF CORES | NOMINAL CROSS SECTIONAL AREA (mm²) | NOMINAL OVERALL DIAMETER (mm) | NOMINAL WEIGHT (kg/km) | TENSILE STRENGTH IN OPERATION (N) |
| 1 | 1.5 | 4.6 | 36 | 22 |
| 1 | 2.5 | 5 | 46 | 37 |
| 1 | 4 | 5.6 | 62 | 60 |
| 1 | 6 | 6.1 | 82 | 90 |
| 1 | 10 | 7.1 | 125 | 150 |
| 1 | 16 | 8.5 | 190 | 240 |
| 1 | 25 | 10.4 | 285 | 375 |
| 1 | 35 | 11.5 | 385 | 525 |
| 1 | 50 | 13.7 | 540 | 750 |
| 1 | 70 | 15.8 | 740 | 1050 |
| 1 | 95 | 17.3 | 965 | 1350 |
| 1 | 120 | 19.1 | 1210 | 1800 |
| 1 | 150 | 21.4 | 1495 | 2250 |
| 1 | 185 | 24.9 | 1885 | 2775 |
| 1 | 240 | 27.3 | 2395 | 3600 |
H1Z2Z2-K NTS Stainless Steel Shield Braid PV cable Data Sheet
| No. cores x cross-sec. mm² | AWG, approx. | Outer-Ø min – max mm | Weight kg/km, approx. |
| 1 x 4 | 12 | 5.9 – 6.6 | 85.0 |
| 1 x 6 | 10 | 6.5 – 7.1 | 112.0 |
| 1 x 10 | 8 | 7.6 – 8.4 | 158.0 |

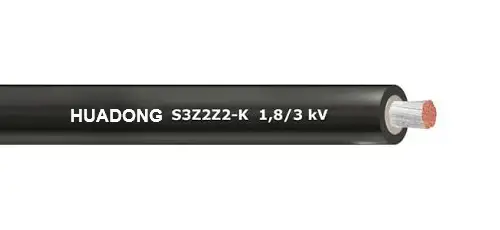

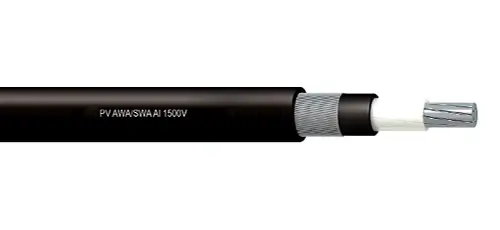

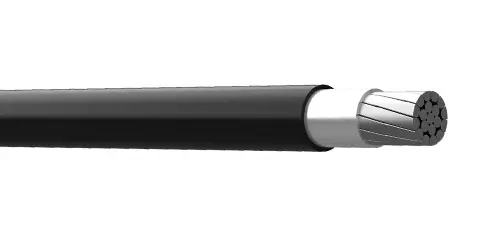

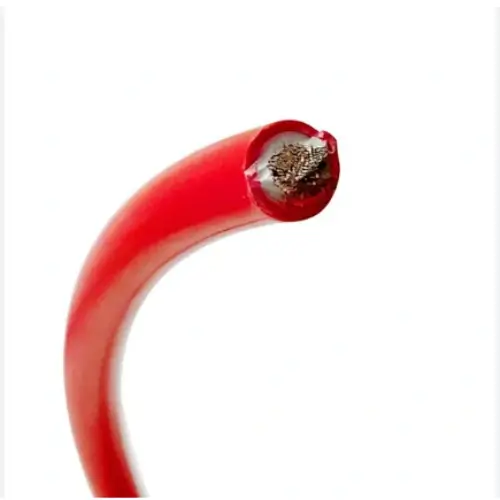

Related hot-selling cables
