Application
1) Can be used for connecting fixed automatic detection and manual fire alarm signalling systems, connected or not to fire extinguishing systems or to another protection system (both active and passive).
2) Suitable for other uses such as gas detection systems and O2 deficiency detectors in HVAC systems.
3) Suitable for other uses such as emergency lighting, emergency controls and electronic locks with an operating voltage lower than or equal to 100 V AC. ; if the operating voltages are higher than 100 V AC. cables complying with the CEI 20-45 standard must be used.
Rated voltage Uo/U: 100/100 V
Max working temperature: 70 °C
Short-circuit temperature : 160 °C
Min. installation temperature : 0 °C
Conductors: annealed red copper cl.5
Flame protection: mica-glass tape
Insulation: LSZH special thermoplastic compound CEI 20-11

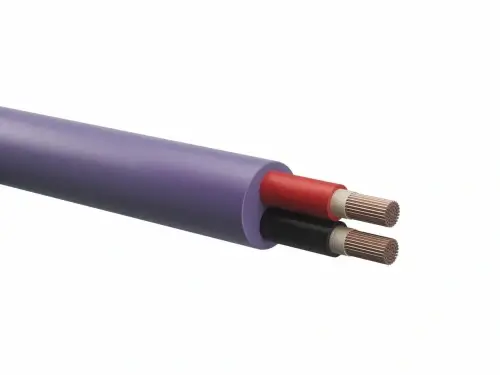

Cores colour: red and black
Sheath: LSZH special thermoplastic compound CEI 20-11
Sheath colour: purple RAL 4005
Fire retardant: duration 120 min. at temperature of 830 °C (- 0 ÷ + 40 °C) CEI EN 50200
| TYPE N° Cores x Sect. N” x mm² |
ø ESTERNO MEDIO mm | Average weight kg/km |
| 2×1 | 8 | 81 |
| 2×1,5 | 8.6 | 76 |
| 2×2,5 | 9.8 | 103 |
| 2×4 | 11 | 188 |
| 2×6 | 12.4 | 258 |
