Type 240, Type 241 and Type 245 Mining Cables to Australia & New Zealand standards

APPLICATION

1) Type 240 Australian standard cable for use as flexible feeder cable to machinery or longwall supply and other industrial applications within the mining industry.

2) Type 241 Australian Standard cables for general and underground coal mining purposes. Uses include mine power feeder cable for continuous miners, pump cable and power supply cable.

3) Type 245 cables are mainly used as longwall shearer cables, and also for continuous miners and peripheral longwall cables. The cable has 3 central pilots for earth continuity monitoring and for control circuits.

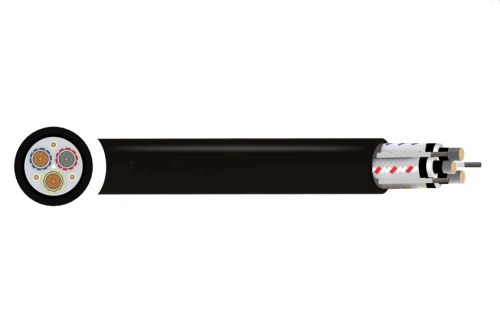

Type 240 Flexible Copper Screened Mining Cable With Three Pilots

sales@huadongcablegroup.com

Voltage Rating:
Type 240.1 – 1.1kV
Type 240.3 – 3.3kV
Type 240.6 – 6.6kV
Type 240.11 – 11kV
Conductor: Tinned annealed copper wires
Separator/Conductor Screen:
1.1kV: Paper separator;
Other voltages: semi-conductive thermosetting compound
Insulation: EPR type R-EP-90
Insulation Screen:
1.1kV: Synthetic tape
From 3.3kV: Semi-conductive thermosetting compound
Screen: Tinned copper/polyamide braid
Interstitial Pilots: EPR covered flexible stranded tinned Copper
Cable Assembly: 3x screened power cores with right hand lay up on cradle separator with 3x pilot cores
Cradle Separator: Semi-conductive thermosetting compound
Sheath: HD-PCP – extra heavy duty, oil resistance and flame retardant.
Optional: open polyamide braid between layer of sheathing
STANDARDS:
AS/NZS 1802:2003, AS/NZS 1125:2001,
Water resistant. Flame retardant. UV, sunlight, ozone and oil resistant

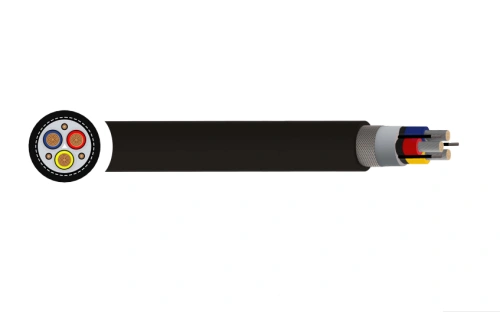

Type 241 Flexible Rubber Screened Mining Cable

sales@huadongcablegroup.com

Voltage Rating:
Type 241.1 – 1.1kV
Type 241.3 – 3.3kV
Type 241.6 – 6.6kV
Type 241.11 – 11kV
Conductor: Tinned annealed copper wires
Separator/Screen:
1.1kV: Paper separator;
For other nominal voltages semi-conductive thermosetting compound over conductors
Insulation: EPR type R-EP-90
Insulation Screen: Semi-conductive thermosetting compound
Cable Assembly: Three screened power and three earth cores laid up with right hand direction on cradle separator with central pilot core
Inner Sheath: Semi-conductive thermosetting compound
Earth Covering: Semi-conductive thermosetting compound
Cradle Separator: Semi-conductive thermosetting compound
Reinforcing Braid: Polyamide Yarns
Sheath: HD-85-PCP Thermosetting compound – extra heavy duty, oil resistance and flame retardant
STANDARDS:
AS/NZS 1802:2018, AS/NZS 1125:2001
Water resistant, Flame retardant; UV, sunlight, ozone and oil resistant

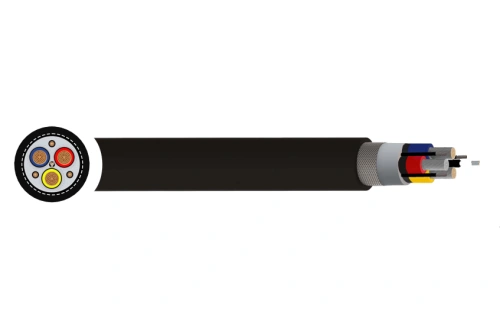

Type 245 Flexible Rubber Mining Cable

sales@huadongcablegroup.com

Voltage Rating:
1.1kV – Type 245.1
3.3kV – Type 245.3
6.6kV – Type 245.6
Conductor: Flexible stranded tinned annealed copper
Conductor Screen: Semi-conductive compound for cables having a voltage rating of 3.3kV and above
Insulation: EPR
Insulation Screen: Semi-conductive elastomer
Cradle Separator: Semiconductive PCP (Polychloroprene)
Central Extensible Pilot: EPR covered flexible stranded tinned copper
Overall Core Screen: Semiconductive PCP (Polychloroprene) filling and covering
Interstitial Earth Conductor: Semi-conductive PCP covered flexible stranded tinned copper
Reinforcing Braid: Open-weave yarns
Sheath: Heavy duty PCP (Polychloroprene). (CPE/CSP sheath can be offered upon request)
STANDARDS:
AS/NZS 1802:2003, AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1

Type 240 Mining cables Dimension

NO.CORES	NOMINAL CONDUCTOR AREA SIZE	NOMINAL WEIGHT
NO.CORES	mm2	kg/100m
Type 240.1
3+3	6	131
3+3	10	159
3+3	16	202
3+3	25	265
3+3	35	326
3+3	50	404
3+3	70	533
3+3	95	635
3+3	120	775
3+3	150	940
3+3	185	1140
3+3	240	1410
3+3	300	1775
Type 240.3
3+3	16	306
3+3	25	379
3+3	35	444
3+3	50	525
3+3	70	656
3+3	95	750
3+3	120	910
3+3	150	1115
3+3	185	1280
3+3	240	1540
Type 240.6
3+3	16	440
3+3	25	521
3+3	35	593
3+3	50	685
3+3	70	830
3+3	95	954
3+3	120	1111
3+3	150	1335
3+3	185	1515
3+3	240	1788
Type 240.11
3+3	25	752
3+3	35	860
3+3	50	961
3+3	70	1125
3+3	95	1300
3+3	120	1470
3+3	150	1659

Get a free quote by e-mail: sales@huadongcablegroup.com

Type 241 Mining cables Dimension

NO.CORES	NOMINAL CONDUCTOR AREA SIZE	NOMINAL WEIGHT
NO.CORES	mm2	kg/100m
Type 241.1
3	6	113
3	10	130
3	16	178
3	25	235
3	35	289
3	50	353
3	70	478
3	95	584
3	120	708
3	150	846
3	185	1029
3	240	1317
Type 241.3
3	16	285
3	25	334
3	35	388
3	50	465
3	70	602
3	95	712
3	120	844
3	150	986
3	185	1177
3	240	1440
Type 241.6
3	16	383
3	25	457
3	35	522
3	50	610
3	70	750
3	95	872
3	120	1013
3	150	1163
3	185	1354
Type 241.11
3	25	655
3	35	720
3	50	818
3	70	1979
3	95	1116
3	120	1246

Get a free quote by e-mail: sales@huadongcablegroup.com

Type 245 Mining cables Dimension

NO.CORES	NOMINAL CONDUCTOR AREA SIZE	NOMINAL WEIGHT
NO.CORES	mm2	kg/100m
Type 245.1
3	16	235
3	25	269
3	35	315
3	50	390
3	70	501
3	95	630
3	120	765
3	150	915
Type 245.3
3	25	338
3	35	398
3	50	490
3	70	592
3	95	739
3	120	870
3	150	1028
Type 245.6
3	50	635
3	70	755
3	95	905
3	120	1050
3	150	1210
