Applications

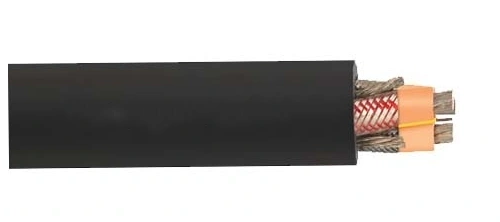

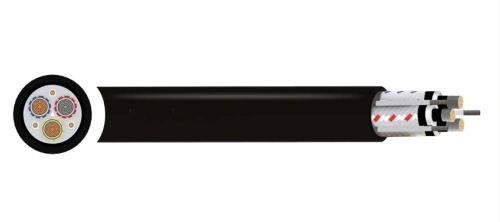

Type SHD-PCG cable is designed for use as heavy-duty trailing cable on mining equipment or as high voltage distribution in underground mines. The cable can also be used where a ground check conductor is required for fail-safe monitoring.
Conductor: Class B compact stranded bare copper
Conductor Shield: Semi-conducting cross-linked copolymer
Insulation: Ethylene Propylene Rubber (EPR) 100% and 133% Insulation Level
Insulation Shield: Strippable semi-conducting cross-linked copolymer
Copper Tape Shield: Helically wrapped 5 mil copper tape with 25% overlap
Grounding Conductors: Two Class B compressed stranded bare copper
Ground Check: Class B compressed stranded bare copper with yellow high strength, polypropylene insulation
Filler: Rubber Fillers as needed
Reinforcement: Tape and Reinforcing twine applied over the core for improved mechanical integrity and ease of stripping
Jacket: Black, mold cured, single layer, flame resistant, thermosetting Chlorinated Polyethylene (CPE). Alternate jacket colors available
Reflective Stripe: Highly visible reflective stripe embedded into the outer jacket to increase safety and help prevent cable runover (optional, contact your sales representative for part number)
| Cond. Size | Cond.Number | Ground | Approx.Weight |
| AWG/Kcmil | No. | No. x AWG | lb/1000ft |
| 2 | 3 | 2×6 | 2366 |
| 1 | 3 | 2×5 | 2325 |
| 2/0 | 3 | 2×3 | 3416 |
| 4/0 | 3 | 2×1 | 4900 |
| 250 | 3 | 2×1/0 | 4833 |
| 350 | 3 | 2×2/0 | 6189 |
| 500 | 3 | 2×4/0 | 9015 |
