Applications

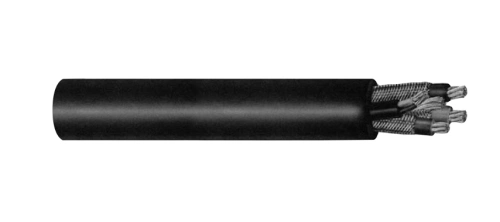

Type SHD-PCG cable is designed for use as heavy-duty trailing cable on mining equipment or as high voltage distribution in underground mines. The cable can also be used where a ground check conductor is required for fail-safe monitoring.
Conductor: 1/0 AWG thru 4/0 AWG coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation: Ethylene Propylene Rubber (EPR)
Insulation Shield: A flexible coated copper/textile braid shield is applied over a non-conducting overlapped tape
Monitor and/or Control Conductors: One or more conductors, copper, rope-lay- stranded per ASTM B172, insulated with Ethylene Propylene Rubber (EPR), extruded jacket over the control conductor(s)
Grounding Conductor: Coated copper, rope-lay-stranded per ASTM B172, in the center of the assembly
Jacket: Reinforced, two-layer, extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE)
| NO. OF COND. | COND. SIZE(AWG) | GRD. COND. SIZE(AWG) | NET WEIGHT | |
| LBS/1000 FT | kg/km | |||
| 3 | 1/0 | 259 | 3092 | 4602 |
| 3 | 2/0 | 329 | 3698 | 5503 |
| 3 | 3/0 | 413 | 4295 | 6392 |
| 3 | 4/0 | 532 | 5115 | 7612 |
