Applications
Type W cable is a heavy-duty industrial cable for use in flexible, portable, and extra-hard usage applications. Suitable for continuous submersion in water ideal for submersible pumps. Also suitable for use in light to medium-duty mining applications. Sunlight and oil resistant. Highly flexible and easy to work with in cold conditions.

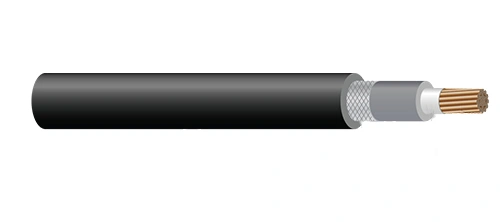

1/C Type W RHH/RHW-2 Industrial Grade Cable
Conductor: Bare, soft drawn, annealed, flexible, rope-lay stranded copper
Separator Tape: Non-conducting tape applied between the conductor and insulation to facilitate stripping
Insulation: Ethylene Propylene Diene Monomer (EPDM)
Reinforcement Binder: Reinforcing twine.
Jacket: Black, flame resistant, thermosetting Chlorinated Polyethylene (CPE)
2/C Type W Industrial Grade Cable
Conductor: Bare, soft drawn, annealed, flexible, rope-lay stranded copper
Separator Tape: Non-conducting tape applied between the conductor and insulation to facilitate stripping
Insulation: Ethylene Propylene Diene Monomer (EPDM). Color coded black, white
Fillers: Jute fillers applied as needed to round the cable core
Reinforcement Binder: Reinforcing binder with twine applied over the core
Jacket: Black, flame resistant, thermosetting Chlorinated Polyethylene (CPE)

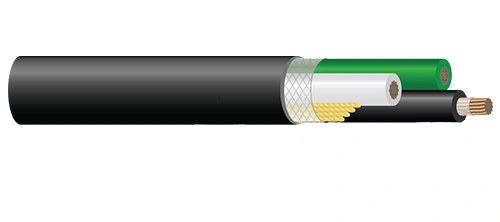

3/C Type W Industrial Grade Cable
Conductor: Bare, soft drawn, annealed, flexible, rope-lay stranded copper per ASTM B3/B172
Separator Tape: Non-conducting tape applied between the conductor and insulation to facilitate stripping
Insulation: Ethylene Propylene Diene Monomer (EPDM). Color coded black, white, green.
Fillers: Jute fillers applied as needed to round the cable core
Reinforcement Binder: Reinforcing binder with twine applied over the core
Jacket: Black, flame resistant, thermosetting Chlorinated Polyethylene (CPE)

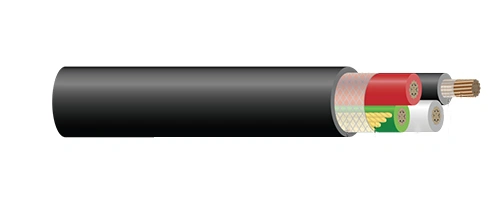

4/C Type W Industrial Grade Cable
Conductor: Bare, soft drawn, annealed, flexible, rope-lay stranded copper per ASTM B3/B172
Separator Tape: Non-conducting tape applied between the conductor and insulation to facilitate stripping
Insulation: Ethylene Propylene Diene Monomer (EPDM). Color coded black, white, red, green
Fillers: Jute fillers applied as needed to round the cable core
Reinforcement Binder: Reinforcing binder with twine applied over the core
Jacket: Black, flame resistant, thermosetting Chlorinated Polyethylene (CPE)
5/C Type W Industrial Grade Cable
Conductor: Bare, soft drawn, annealed, flexible, rope-lay stranded copper per ASTM B3/B172
Separator Tape: Non-conducting tape applied between the conductor and insulation to facilitate stripping
Insulation: Ethylene Propylene Diene Monomer (EPDM). Color coded black, white, red, green, orange
Fillers: Jute fillers applied as needed to round the cable core
Reinforcement Binder: Reinforcing binder with twine applied over the core
Jacket: Black, flame resistant, thermosetting Chlorinated Polyethylene (CPE)
| TYPE W – 1/C | ||
| Cond. Size | Cond. Number | Approx.Weight |
| AWG/ Kcmil | No. | lb/1000ft |
| 8 | 1 | 132 |
| 6 | 1 | 192 |
| 4 | 1 | 255 |
| 2 | 1 | 352 |
| 1 | 1 | 432 |
| 1/0 | 1 | 514 |
| 2/0 | 1 | 614 |
| 3/0 | 1 | 749 |
| 4/0 | 1 | 894 |
| 250 | 1 | 1059 |
| 350 | 1 | 1411 |
| 500 | 1 | 1898 |
| TYPE W – 2/C | ||
| Cond. Size | Cond. Number | Approx.Weight |
| AWG/ Kcmil | No. | lb/1000ft |
| 8 | 2 | 330 |
| 6 | 2 | 403 |
| 4 | 2 | 611 |
| 2 | 2 | 925 |
| 1 | 2 | 1075 |
| 1/0 | 2 | 1203 |
| 2/0 | 2 | 1804 |
| 3/0 | 2 | 1764 |
| TYPE W – 3/C | ||
| Cond. Size | Cond. Number | Approx.Weight |
| AWG/ Kcmil | No. | lb/1000ft |
| 8 | 3 | 477 |
| 6 | 3 | 609 |
| 4 | 3 | 881 |
| 2 | 3 | 1151 |
| 1 | 3 | 1173 |
| 1/0 | 3 | 1873 |
| 2/0 | 3 | 2098 |
| 3/0 | 3 | 2406 |
| 4/0 | 3 | 2904 |
| 250 | 3 | 3382 |
| 350 | 3 | 5679 |
| 500 | 3 | 6568 |
| TYPE W – 4/C | ||
| Cond. Size | Cond. Number | Approx.Weight |
| AWG/ Kcmil | No. | lb/1000ft |
| 8 | 4 | 577 |
| 8 | 4 | 588 |
| 6 | 4 | 748 |
| 4 | 4 | 952 |
| 4 | 4 | 1054 |
| 2 | 4 | 1766 |
| 1 | 4 | 1985 |
| 1/0 | 4 | 2249 |
| 2/0 | 4 | 2764 |
| 3/0 | 4 | 3226 |
| 4/0 | 4 | 3979 |
| 250 | 4 | 5045 |
| 350 | 4 | 7114 |
| 500 | 4 | 8464 |
| TYPE W – 5/C | ||
| Cond. Size | Cond. Number | Approx.Weight |
| AWG/ Kcmil | No. | lb/1000ft |
| 8 | 5 | 665 |
| 6 | 5 | 930 |
| 4 | 5 | 1347 |
| 2 | 5 | 1990 |
| 1 | 5 | 1907 |
| 1/0 | 5 | 3075 |
| 2/0 | 5 | 3336 |
| 3/0 | 5 | 3893 |
| 4/0 | 5 | 5313 |
